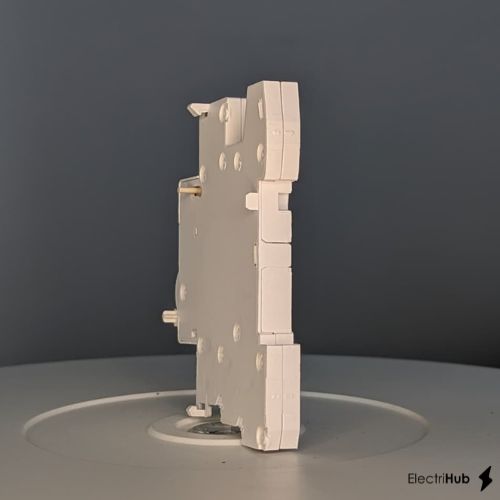

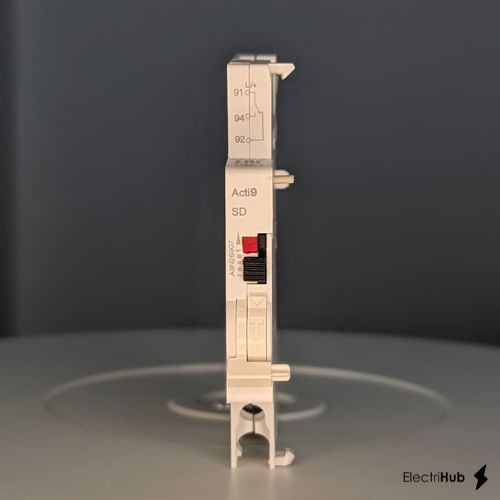

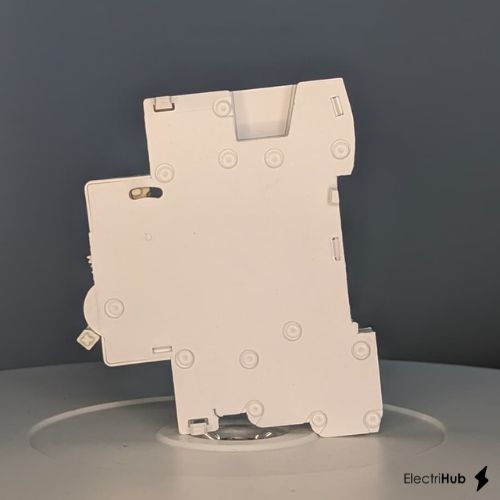

A9N26907 - Auxiliary contact, Acti9 A9N, SD, 1 C/O, 100mA to 6A, 24-415 VAC, 24-130 VDC, bottom connection - Schneider Electric
| Cat No. | A9N26907 |
| Category | MCB Accessories |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
| Product Type | MCB Accessories |
In Stock — 187 Qty
$28.04
| Quantity | Expected Delivery |
|---|---|
| 187 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 25 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
Schneider A9N26907 MCB Accessories Technical Specification
| MCB Accessories | |
|---|---|
| Other Details | 24-415Vac, 24-130Vdc |
| Range of Product | — |
| Sub Family | Auxiliary contact |
| Sub Family | — |
| Type | Acti9 |
Product Details
Schneider Electric A9N26907 - This Acti9 electrical auxiliary is a modular fault contact used as remote indication of tripping upon a fault of the associated device. In AC network, the In rated current is 6A at 24VAC to 240VAC and 3A at 415VAC with operating frequency of 50Hz to 60Hz. In DC network, the In rated current is 6A at 24VDC, 2A at 48VDC, 1.5A at 60VDC and 1A at 130VDC. It has 1 position switch with contacts type 1 C/O. It is intended for new or renovated installation in small commercial and buildings. This fault contact is compatible with Acti9 ranges such as C120, C60H-DC, SW60-DC, C60PV-DC, and xC60. The SD is either used for device short name or compatibility code. The mechanical indicator is provided within the product for local signalling. It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable with a cable cross section of 0.5mm² to 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows flexible copper cables (2 cables) with a cable cross section of 1.5mm². It has a screw clamp terminal connection at bottom. The connection allows flexible with ferrule copper cables (2 cables) with a cable cross section of 1.5mm². The Ui rated insulation voltage is up to 500V. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 1. The dimensions are (W) 9mm x (H) 85.3mm x (D) 68mm. The product colour is white. The product weight is 30g. The pollution degree is 3. The level of tropicalisation is treatment 2. The wire stripping length is 9mm. The tightening torque of connection is 1N.m (bottom) for PZ1 screwdriver type. The IP degree of protection is IP20. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with EN/IEC 60947-5-1 and GB/T 14048.5 standards. It has EAC and CCC quality labels and certified with CE and UKCA certifications. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
Schneider A9N26907 dimensions and weight
Dimensions (L × W × H)
Length
9.2 cm
Width
7.8 cm
Height
2 cm
Weight
Net Weight
0.038 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
