GV3L40
GV3L40
GV3L40
GV3L40
Click to zoom
GV3L40 GV3L40 GV3L40 GV3L40
/ 4
Schneider
(No reviews yet)

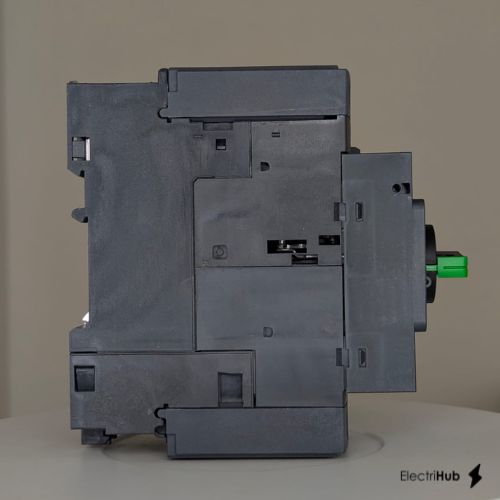

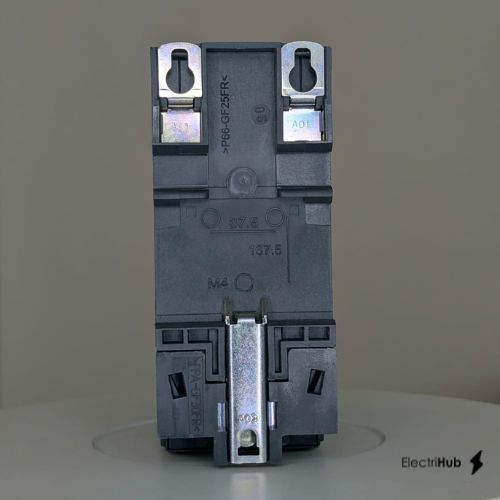

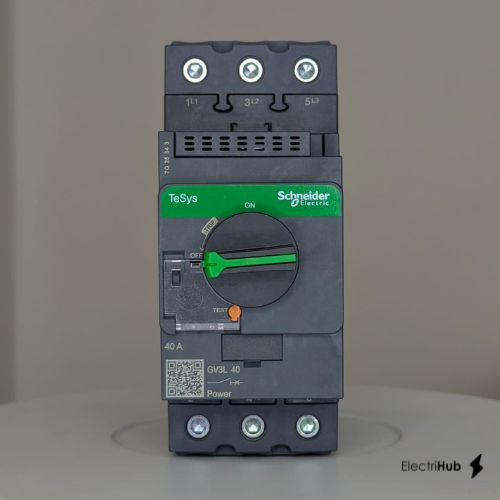

GV3L40 - Motor circuit breaker, TeSys GV3, 3P, 40 A, magnetic, rotary handle, EverLink terminals - Schneider Electric

Cat No. GV3L40
Category MPCB
Stock In Stock
Condition Brand New, Sealed Packaging
Product Type MPCB

In Stock — 106 Qty

$235.02
Quantity Expected Delivery
106 Units 25 Business Days

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 38 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

Schneider GV3L40 MPCB Technical Specification

MPCB
Actuator Type —
Application Motor
Breaking Cap 50kA
OL Setting —
Protection —
Range of Product —
Rating 40A
Release Magnetic Release
SC Setting —
Type GV3-L

Product Details

Schneider Electric GV3L40 - TeSys GV motor circuit breaker, 3 poles (3P), 40A/690V, for 3-phase motor applications 18.5kW@400V,It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 50kA@400V,Connection by Everlink BTR screw terminals,Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3,To complete motor protection, use it in association with a thermal overload relay LRD340 (to be ordered separately),Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

Schneider GV3L40 dimensions and weight

Dimensions (L × W × H)
Length 14.5 cm
Width 6.5 cm
Height 16 cm
Weight
Net Weight 0.974 kg

Dimensions are approximate. For precise dimensional drawings, contact us.

Related Products

Frequently Bought Together

Product Line Card

No Data Available

There is no data to show you right now.

Alternate Products

Product Overview

Schneider Electric GV3L40 - TeSys GV motor circuit breaker, 3 poles (3P), 40A/690V, for 3-phase motor applications 18.5kW@400V,It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 50kA@400V,Connection by Everlink BTR screw terminals,Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3,To complete motor protection, use it in association with a thermal overload relay LRD340 (to be ordered separately),Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). We are dedicatedly involved in providing an excellent quality products at Electrihub.

Frequently Asked Questions for GV3L40

Every Schneider GV3L40 MPCB purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging — ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.

Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right MPCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
The Schneider Electric GV3L40 MPCB provides integrated motor protection with adjustable thermal overload protection, magnetic short circuit protection, phase loss sensitivity, compact design, and high reliability for motor control applications.
It is widely used in motor control centers, industrial machinery, pump and compressor panels, conveyors, HVAC systems, and automation panels for reliable motor protection.
It protects motors against overload, short circuit, phase failure, and locked rotor conditions by tripping the circuit before thermal or electrical damage occurs.
Check motor full load current (FLC), adjustment range, short circuit breaking capacity, trip class, coordination with contactors, and compatibility with Schneider accessories.
Ensure correct line and load wiring, proper torque tightening, correct current setting as per motor FLC, and installation according to Schneider Electric wiring guidelines.
Pricing varies depending on current range and series. Visit Electrihub for updated Schneider MPCB prices and availability.
The official datasheet for GV3L40 is available on Electrihub with wiring diagrams, trip curves, and technical specifications.
The price of Schneider GV3L40 MPCB depends on specifications, availability, and market conditions. You can check the latest GST-inclusive price on Electrihub India, which provides genuine products, transparent billing, and PAN India delivery.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
