A9KF71206
A9KF71206
A9KF71206
A9KF71206
Click to zoom
A9KF71206 A9KF71206 A9KF71206 A9KF71206
/ 4
Order on Whatsapp Schneider Electric Product Selector tool
Schneider
(No reviews yet)

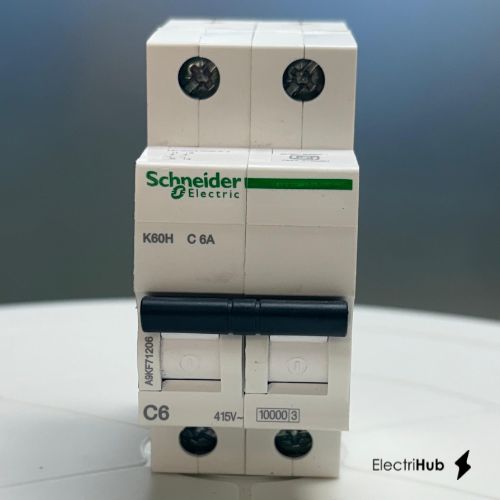

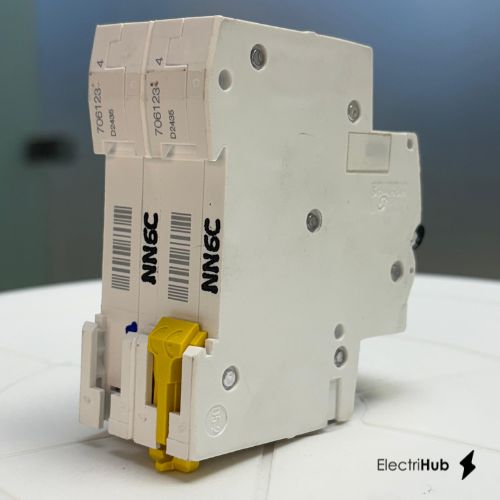

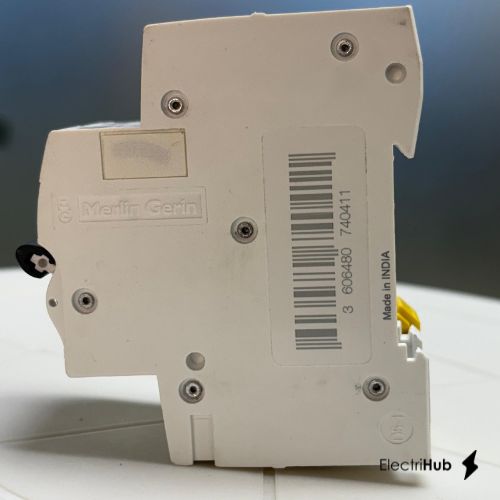

A9KF71206 - Acti9 K60H 2P - 6 A - C curve 10000 A - Schneider Electric

Cat No. A9KF71206
Category MCB
Stock In Stock
Condition Brand New, Sealed Packaging
Product Type MCB
Please contact us for the exact delivery timeline

In Stock — 339 Qty

$21.54
Quantity Expected Delivery
339 Units 25 Business Days

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 34 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

Schneider A9KF71206 MCB Technical Specification

MCB
Breaking Cap 10kA
Curve C
Model A9K
No of pole 2P
Range of Product —
Rating 6A

Product Details

Schneider Electric A9KF71206 - This Acti9 K60H product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles and 6A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN 60898-1 standard and at conforming to standard. This product is compliant with EN/IEC 60898-1 standard. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The connection can be made downstream by biconnect comb busbar. It can be also made upstream/downstream by tunnel terminals. A padlock device is available for work to be carried out on live parts. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 70mm. The weight is 0.24kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 55°C. The storage temperature is -25°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

Schneider A9KF71206 dimensions and weight

Dimensions (L × W × H)
Length 8 cm
Width 4.1 cm
Height 9 cm
Weight
Net Weight 0.25 kg

Dimensions are approximate. For precise dimensional drawings, contact us.
