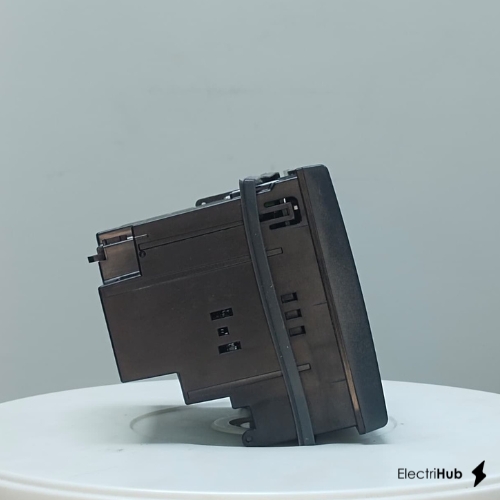

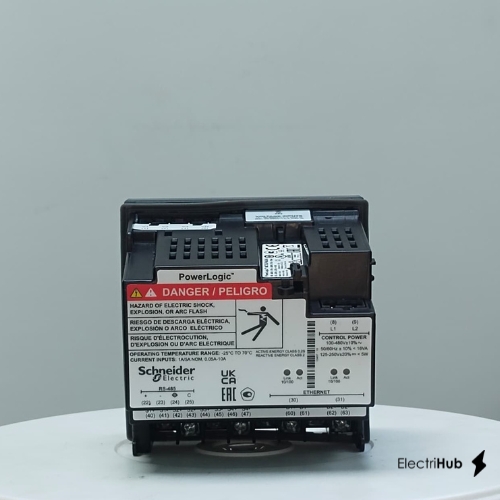

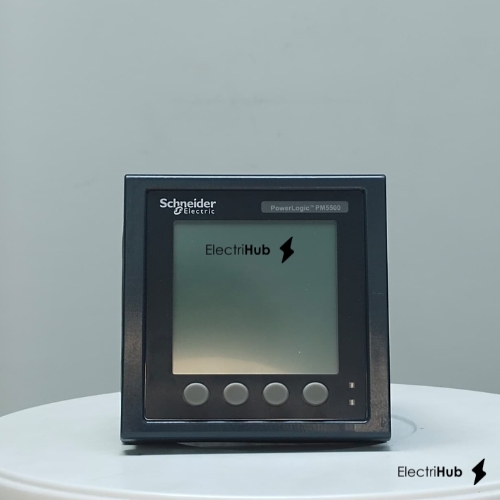

METSEPM5560
METSEPM5560
METSEPM5560
METSEPM5560
Click to zoom
METSEPM5560 METSEPM5560 METSEPM5560 METSEPM5560
/ 4
Order on Whatsapp Schneider Electric Product Selector tool
Schneider
(No reviews yet)

30003008-power meter PowerLogic PM5560, 2 ethernet, up to 63th Harmonic, 1,1MB 4DI/2DO 52 alarms

Cat No. METSEPM5560
Category Digital Meters
Stock In Stock
Condition Brand New, Sealed Packaging
Product Type Digital Meters
Please contact us for the exact delivery timeline

In Stock — 43 Qty

Quantity Expected Delivery
43 Units 25 Business Days

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 41 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

Schneider METSEPM5560 Digital Meters Technical Specification

Digital Meters
Accuracy Class 0.2S
Display LCD
Phase 1Ph/3Ph
Type of measurement Power meter

Product Details

Schneider Electric METSEPM5560 - This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.2S accuracy per IEC 62053-22 standard and 128 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 63rd Harmonic. Include 1.1 MegaBytes of memory for up to 14 selectable parameters with configurable interval and duration. This meter also feature the direct monitoring of neutral current. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 480 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 20 to 690 VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 45 to 65 Hz. Communication protocol are Modbus RTU and ASCII 2 wires with RS485 port support plus Modbus TCP/IP, Ethernet/IP and BACnet/IP based on 10/100 Mbit/s, daisy chain Ethernet with RJ45 port support. The embedded communication capabilities allow the support of the DNP 3.0 protocol, the access to an onboard web server and a Serial to Ethernet gateway. The meter also has four digital inputs with WAGES support and two digital outputs. There are 52 configurable alarms and it supports eight tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 3.03 inches (77 millimetres), height 3.78 inches (96 millimetres) and product weight 15.9 onces (450 g).. Electrihub represents a commitment to excellence, delivering world-class electrical products with precision, quality, and trust across global markets.

Product Dimensions

Schneider METSEPM5560 dimensions and weight

Dimensions (L × W × H)
Length 7.2 cm
Width 9.6 cm
Height 9.6 cm
Weight
Net Weight 0.43 kg

Dimensions are approximate. For precise dimensional drawings, contact us.

Related Products

30003008D

30003008D - PM5560 Power meter 63rd 0.2S 8MT RS Ethe AC Schneider Electric

30003008D

Cat No: 30003008D In Stock: 133 Units expedited delivery
$984.05
30003007D

30003007D - PM5340 CI0.5S, 1 Ethernet, 31st harmonic, 2 DI, 2 DO, 2 RO, 35 Alarms, Data lo..

30003007D

Cat No: 30003007D Back Ordered expedited delivery
$575.58
30003005D

30003005D - PM5320 Power meter 31stHar 0.5S Ethernet AC Schneider Electric

30003005D

Cat No: 30003005D In Stock: 426 Units expedited delivery
$536.48
30002975

30002975 - Power plus energy meter and smart demand controller, PowerLogic EM7290, LCD, RS..

30002975

Cat No: 30002975 In Stock: 28 Units expedited delivery
$836.68
30002198

30002198 - EM7280 Demand controller Cl 0.5S RS485 - Schneider Electric

30002198

Cat No: 30002198 In Stock: 26 Units expedited delivery
$652.68
30002055

30002055 - EM7230 Demand controller Cl 1.0 RS485 - Schneider Electric

30002055

Cat No: 30002055 In Stock: 155 Units expedited delivery
$602.47
METSEPM2230D

METSEPM2230D - EasyLogic PM2230, Power & Energy meter, up to 31stH, LCD, RS485, class 0.5S..

METSEPM2230D

Cat No: METSEPM2230D In Stock: 172 Units expedited delivery
$299.24
METSEPM2220D

METSEPM2220D - EasyLogic PM2220, Power & Energy meter, up to 15th H, LCD, RS485, class 1 -..

METSEPM2220D

Cat No: METSEPM2220D In Stock: 18 Units expedited delivery
$275.29

Frequently Bought Together

No Data Available

There is no data to show you right now.

Product Line Card

No Data Available

There is no data to show you right now.

Alternate Products

WM301BC3C00

WM301BC3C00 - 3PH, 4W, kWH,CT Op. Base Mtg. kWH Meter 240V, 5-10A, Acc. CL1 - L&T

WM301BC3C00

Cat No: WM301BC3C00 Back Ordered expedited delivery
Price On Request
WM301BC7D10

WM301BC7D10 - 3PH, 4W, kWH Dir. Base Mtg. kWH Meter 240V, 10-60A sleek, Acc. CL1 - L&T

WM301BC7D10

Cat No: WM301BC7D10 Back Ordered expedited delivery
Price On Request
WM301BC6D20

WM301BC6D20 - 3PH, 4W, kWH Dir. Base Mtg. kWH Meter 240V, 10-40A sleek, Acc. CL1 - L&T

WM301BC6D20

Cat No: WM301BC6D20 Back Ordered expedited delivery
Price On Request
WM301BC8D10

WM301BC8D10 - 3PH, 4W, kWH Dir. Base Mtg. kWH Meter 240V, 50-100A sleek, Acc. CL1 - L&T

WM301BC8D10

Cat No: WM301BC8D10 Back Ordered expedited delivery
Price On Request
WM301BC4D20

WM301BC4D20 - 3PH, 4W, kWH Dir. Base Mtg. kWH Meter 240V, 5-20A sleek, Acc. CL1 - L&T

WM301BC4D20

Cat No: WM301BC4D20 Back Ordered expedited delivery
Price On Request
WR300BB1200

WR300BB1200 - 3PH, 4W, TVM Meter, 110V(L-L) 1A CL-0.5S, Base Mounting - L&T

WR300BB1200

Cat No: WR300BB1200 Back Ordered expedited delivery
Price On Request
WR300BC12RS

WR300BC12RS - 3PH, 4W, TVM Meter, 240V(L-N) 1A, CL-0.5S, RS485, Base Mounting - L&T

WR300BC12RS

Cat No: WR300BC12RS Back Ordered expedited delivery
Price On Request
WR300BC1200

WR300BC1200 - 3PH, 4W, TVM Meter, 240V(L-N) 1A CL-0.5S, Base Mounting - L&T

WR300BC1200

Cat No: WR300BC1200 Back Ordered expedited delivery
Price On Request

Product Overview

Schneider Electric METSEPM5560 - This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.2S accuracy per IEC 62053-22 standard and 128 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 63rd Harmonic. Include 1.1 MegaBytes of memory for up to 14 selectable parameters with configurable interval and duration. This meter also feature the direct monitoring of neutral current. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 480 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 20 to 690 VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 45 to 65 Hz. Communication protocol are Modbus RTU and ASCII 2 wires with RS485 port support plus Modbus TCP/IP, Ethernet/IP and BACnet/IP based on 10/100 Mbit/s, daisy chain Ethernet with RJ45 port support. The embedded communication capabilities allow the support of the DNP 3.0 protocol, the access to an onboard web server and a Serial to Ethernet gateway. The meter also has four digital inputs with WAGES support and two digital outputs. There are 52 configurable alarms and it supports eight tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 3.03 inches (77 millimetres), height 3.78 inches (96 millimetres) and product weight 15.9 onces (450 g).. Electrihub represents a commitment to excellence, delivering world-class electrical products with precision, quality, and trust across global markets.

Frequently Asked Questions for METSEPM5560

The METSEPM5560 Digital Meters is designed to accurately measure electrical parameters such as voltage, current, power, and energy consumption for monitoring applications.
The METSEPM5560 Digital Meters can be installed on standard DIN rails or panel-mounted configurations depending on the specific model requirements.
The METSEPM5560 Digital Meters typically supports communication protocols such as Modbus RS-485, allowing integration with energy management systems.
The METSEPM5560 Digital Meters provides precise measurement of voltage, current, power factor, frequency, and related electrical metrics for industrial and commercial setups.
Yes, the METSEPM5560 Digital Meters supports data logging and energy history tracking, enabling detailed monitoring and analysis over time.
Every Schneider METSEPM5560 Digital Meters purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right Digital Meters for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
The Schneider METSEPM5560 Digital Meters is engineered for precise industrial power monitoring, sub-billing, and energy management systems. It features a high accuracy class of 0.5S conforming to IEC standards, ensuring minimal measurement deviation. Available through RAS Electrihub, this meter is widely deployed in commercial distribution boards, motor control centers (MCCs), and main switchboards across India to track active, reactive, and apparent energy parameters.
Yes, the Schneider METSEPM5560 is equipped with integrated communication capabilities, typically supporting RS485 Modbus RTU protocols. This allows seamless integration into Energy Management Software (EMS), SCADA systems, and Building Management Systems (BMS). When you procure this model from RAS Electrihub, our technical support can guide you with register maps and baud rate settings for remote data logging and cloud-based energy analytics.
The CT and PT ratios on the Schneider METSEPM5560 can be programmed directly via the front-panel tactile keys/display menu or remotely via communication software. The meter supports wide programmable CT primary settings (up to 99k A) and secondary settings (1A or 5A), as well as flexible PT ratio scaling for LT or HT electrical networks. For detailed step-by-step programming guidelines for this exact model, you can consult the technical literature provided by RAS Electrihub.
Depending on the exact variant, the Schneider METSEPM5560 offers comprehensive true-RMS measurements including Voltage (L-L, L-N), Current per phase, Frequency, Power Factor (True & Displacement), Active/Reactive/Apparent Power (kW, kVAR, kVA), and detailed energy accumulation (kWh, kVARh, kVAh). It also monitors crucial power quality indicators such as Total Harmonic Distortion (THD) for voltage and current to help mitigate overheating and harmonic resonance in Indian industrial power grids.
RAS Electrihub is a trusted supplier of 100% genuine industrial switchgear and automation components in India, including the Schneider METSEPM5560. Every meter is sourced directly and comes backed by the official manufacturer's warranty against manufacturing defects. RAS Electrihub provides fast pan-India shipping, competitive bulk B2B pricing, and robust post-sales technical assistance to ensure your electrical installation and commissioning go flawlessly.

Reviews & Ratings

4.1
8 reviews
5
4
4
1
3
3
2
0
1
0
Ashok Kumar Jun 25, 2026

Tested this Schneider meter against our standard facility master bench calibrator. Accuracy tolerances are minimal, completely line up with technical compliance logs. RAS Electrihub is turning out to be our reliable choice for emergency electrical procurement. Received standard boxed casing with clear wiring diagram instruction books.

Rajesh Kulkarni Jun 25, 2026

Our contract team needed an urgent replacement for a blown dual-source energy meter. Ordered this Schneider METSEPM5560 through the RAS Electrihub .in domain. Delivery was fast to our factory site in Pune, and the unit comes with a clear manufacturer warranty stamp. RS485 communication is working exactly as specified in the catalog data sheet.

Ananth Malhotra Jun 25, 2026

Procured 6 units of Schneider METSEPM5560 from RAS Electrihub for our commercial panel upgrade project in Gurgaon. Glad to find official retail inventory available with GST input tax invoices readily downloadable. The meters integrated into our existing local energy monitoring system without any calibration mismatch. Excellent transit packaging.

Sachin Sharma Jun 25, 2026

Installed the Schneider METSEPM5560 into our central control panel last Friday. Setup was straightforward, parameter readings for current, voltage, and power factor are perfectly stable. Heartfelt thanks to the RAS Electrihub execution desk for arranging swift courier dispatch to hit our project handover target.

Priya K Nov 4, 2025

Display is clear, readings are rock solid. Our entire team trusts these meters for critical monitoring. Only drawback is premium price.

Nisha V Nov 4, 2025

Schneider digital meters like the METSEPM5560 have simplified our maintenance and enhanced safety. The product integrates seamlessly with our network and supports remote monitoring. Data accuracy is unmatched; we have seen significant improvements in energy audits. Recommended for any automation upgrade, whether in India or overseas.

Praveen C Nov 4, 2025

Easy setup, readings are consistent so far.

Charlotte B Nov 4, 2025

Installation was quick, clear readings, and sturdy build.
