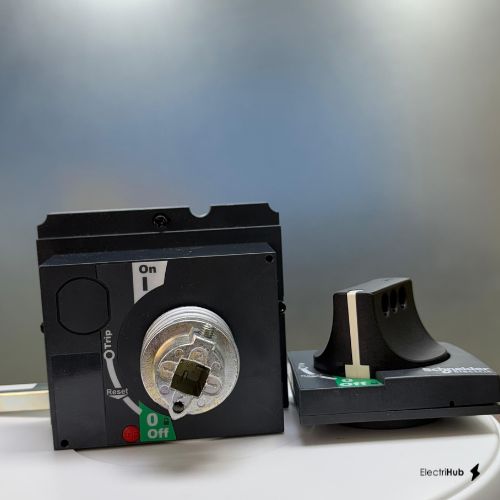

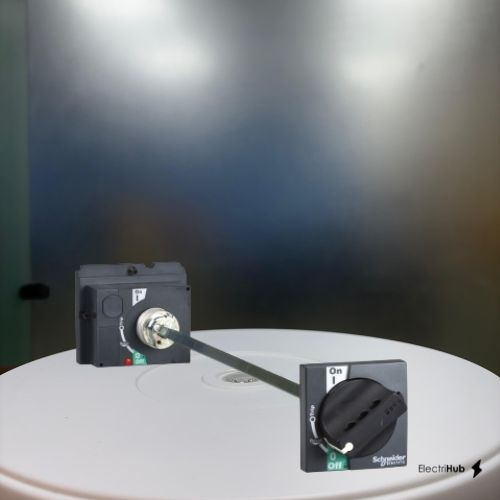

LV429338 - extended rotary handle, Compact NSX 100/160/250, PowerPact Multistandard H/J, EasyPact CVS 100/160/250, black standard handle, IP55 - Schneider Electric
| Cat No. | LV429338 |
| Category | MCCB Accessories |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
| Product Type | MCCB Accessories |
In Stock — 118 Qty
$49.50
| Quantity | Expected Delivery |
|---|---|
| 118 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 41 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
Schneider LV429338 MCCB Accessories Technical Specification
| MCCB Accessories | |
|---|---|
| Other Details | NSX/CVS 100/160/250A |
| Range of Product | — |
| Sub Family | Rotary Handles |
| Type | NSX/CVS |
Product Details
Schneider Electric LV429338 - It is an extended rotary handle for Compact NSX 100/160/250, PowerPact Multistandard H/J frames and EasyPact CVS 100/160/250 devices,It is suitable for isolation and it is used for standard applications,It maintains the access to trip unit settings and to the push to trip button,It is equipped with a standard black handle,There is an indication of the three device positions O (OFF), I (ON) and tripped,This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front,The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm,The degrees of protection are IP55 and IK08,This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm),As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
Schneider LV429338 dimensions and weight
Dimensions (L × W × H)
Length
49.1 cm
Width
10.7 cm
Height
10.7 cm
Weight
Net Weight
0.73 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
Related Products
Frequently Bought Together
Product Line Card
No Data Available
There is no data to show you right now.
Alternate Products
Product Overview
Schneider Electric LV429338 - It is an extended rotary handle for Compact NSX 100/160/250, PowerPact Multistandard H/J frames and EasyPact CVS 100/160/250 devices,It is suitable for isolation and it is used for standard applications,It maintains the access to trip unit settings and to the push to trip button,It is equipped with a standard black handle,There is an indication of the three device positions O (OFF), I (ON) and tripped,This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front,The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm,The degrees of protection are IP55 and IK08,This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm),As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock. We are dedicatedly involved in providing an excellent quality products at Electrihub.
