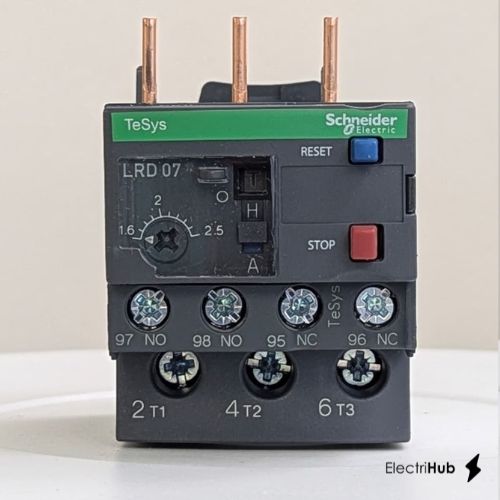

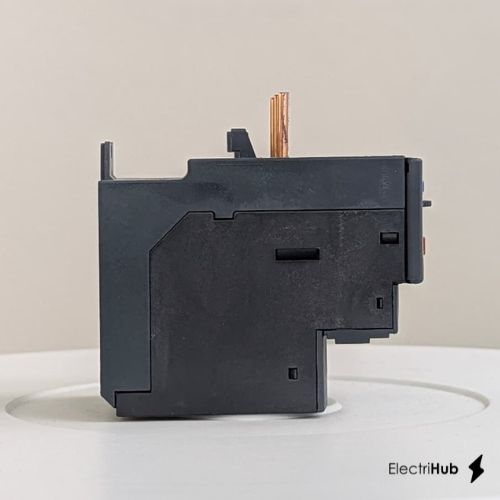

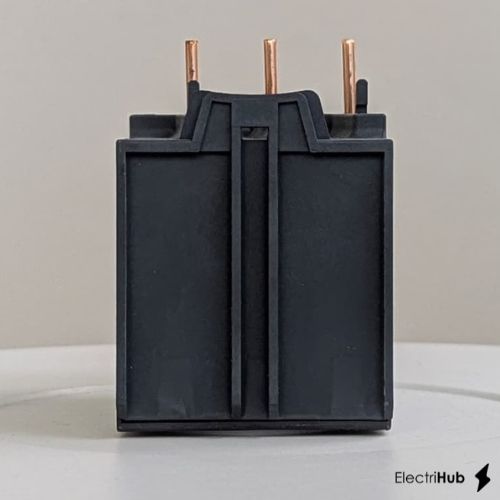

LRD07 - Thermal overload relay, TeSys Deca, 1.6 to 2.5 A, class 10A - Schneider Electric
| Cat No. | LRD07 |
| Category | Over Load Relay |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
| Product Type | Over Load Relay |
In Stock — 337 Qty
$44.92
| Quantity | Expected Delivery |
|---|---|
| 337 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 46 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
Schneider LRD07 Over Load Relay Technical Specification
| Over Load Relay | |
|---|---|
| Bimetal relay Type | LR-D |
| Contactor Type | LC1D09...LC1D38 |
| Current Range | 1.6-2.5A |
| Range of Product | TeSys LRD/TeSys Deca |
| Secondary Volt Ac | 400Vac |
| Sub Family | TeSys Deca |
| Type | Thermal Overload Relay |
Product Details
Schneider Electric LRD07 Thermal overload relay - TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 1.6 to 2.5 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine). We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
Schneider LRD07 dimensions and weight
Dimensions (L × W × H)
Length
4.9 cm
Width
7.7 cm
Height
8.8 cm
Weight
Net Weight
0.14 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
Related Products
Frequently Bought Together
No Data Available
There is no data to show you right now.
Product Line Card
No Data Available
There is no data to show you right now.
Alternate Products
Product Overview
Schneider Electric LRD07 Thermal overload relay - TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 1.6 to 2.5 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine). We are dedicatedly involved in providing an excellent quality products at Electrihub.
Frequently Asked Questions for LRD07
The Schneider LRD07 Overload Relay provides thermal protection for motors by automatically disconnecting the circuit during overload conditions. Key features include adjustable current settings, Phase-loss protection, Class 10A or Class 20 tripping, test/reset functions, and compatibility with Schneider contactors such as LC1D series. It enhances motor safety and prevents overheating in industrial applications.
The Schneider LRD07 Overload Relay supports adjustable current ranges depending on the model series. These ranges allow precise tuning to motor full-load current. Accurate current adjustment ensures optimum motor protection and prevents nuisance tripping during startup loads.
The Schneider LRD07 typically supports Class 10A/20 overload tripping curves, designed to protect motors against prolonged overcurrent conditions. These trip classes are suitable for general-purpose industrial motors, conveyors, compressors, and pumps.
The Schneider LRD07 Overload Relay is designed for direct mounting on Schneider LC1D contactors. It supports screw terminals or EverLink terminals, depending on frame size. This ensures easy wiring, compact installation, and reliable coordination with motor starters.
The Schneider LRD07 Overload Relay is used in motor starters, control panels, pumping systems, compressors, elevators, industrial machinery, and conveyor automation. It ensures overload protection and prevents motor failures.
Schneider Overload Relay prices vary by model, current rating, and availability. ElectriHub provides competitive and real-time pricing for original Schneider products. You can request a quote directly from our platform for the best updated price.
The Schneider Overload Relay datasheet includes trip class, current range, mounting type, coordination type (Type 1/Type 2), electrical endurance, terminal torque, auxiliary contact configuration, and environmental ratings. ElectriHub can provide the complete official PDF datasheet upon request.
Every Schneider LRD07 Over Load Relay purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right Over Load Relay for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right Over Load Relay for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
The Schneider Square D LRD07 is engineered for high reliability and industrial-grade performance. It offers robust protection, long electrical endurance, and compatibility with Square D control and protection systems. Its compact design, standardized mounting, and precise operating mechanisms make it ideal for demanding industrial applications.
The Schneider Square D LRD07 is typically used in motor control centers, protection panels, automation circuits, and machinery requiring dependable switching or motor protection. It is widely used in HVAC systems, industrial motors, compressors, pumps, and other electric control assemblies due to its high durability and performance stability.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
The price of Schneider LRD07 Over Load Relay depends on specifications, availability, and market conditions. You can check the latest GST-inclusive price on Electrihub India, which provides genuine products, transparent billing, and PAN India delivery.
