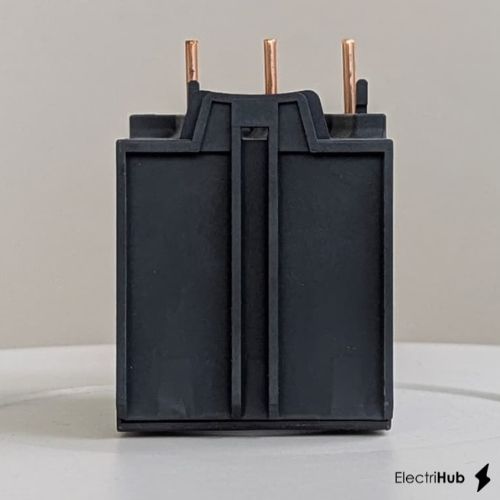

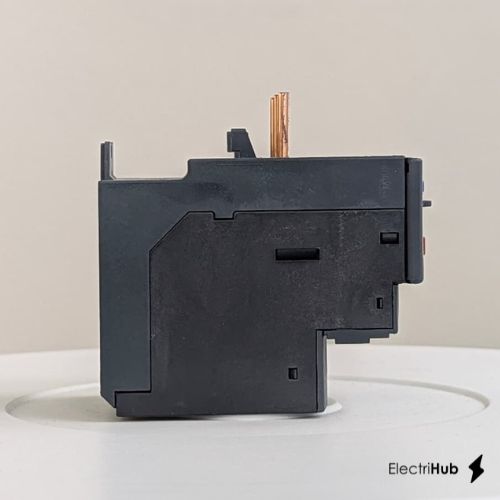

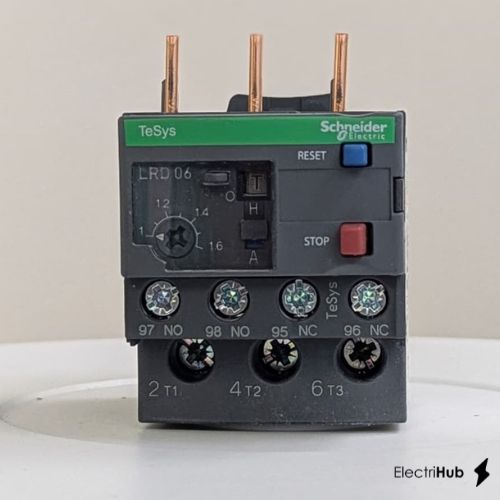

LRD06 - Thermal overload relay, TeSys Deca, 1 to 1.6 A, class 10A - Schneider Electric
| Cat No. | LRD06 |
| Category | Over Load Relay |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
| Product Type | Over Load Relay |
In Stock — 405 Qty
$44.92
| Quantity | Expected Delivery |
|---|---|
| 405 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 20 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
Schneider LRD06 Over Load Relay Technical Specification
| Over Load Relay | |
|---|---|
| Bimetal relay Type | LR-D |
| Contactor Type | LC1D09...LC1D38 |
| Current Range | 1.0-1.6A |
| Range of Product | TeSys LRD/TeSys Deca |
| Secondary Volt Ac | 400Vac |
| Sub Family | TeSys Deca |
| Type | Thermal Overload Relay |
Product Details
Schneider Electric LRD06 Thermal overload relay - TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 1.0 to 1.7 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine). We are dedicatedly involved in providing an excellent quality products at Electrihub.
