LC1K0901P7
Click to zoom
LC1K0901P7
Order on Whatsapp Schneider Electric Product Selector tool
Schneider
(No reviews yet)

LC1K0901P7 - TeSys K contactor - 3P - AC-3

Cat No. LC1K0901P7
Category Power Contactor
Stock Back Ordered
Condition Brand New, Sealed Packaging
Product Type Power Contactor
Please contact us for the exact delivery timeline

Back Ordered

$43.99

Lead Time: 25 Working Days.

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 15 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

Schneider LC1K0901P7 Power Contactor Technical Specification

Power Contactor
AC1 Rating Not Applicable
AC3 Rating 9A
Coil Voltage 230Vac
Inbuilt Auxiliary Contact 1NC
Model K Model
No of Pole 3P
Range of Product —

Product Details

Schneider Electric LC1K0901P7 - TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 230V 50/60Hz AC coil, 1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

Schneider LC1K0901P7 dimensions and weight

Dimensions (L × W × H)
Length 4.8 cm
Width 6.2 cm
Height 6.6 cm
Weight
Net Weight 0.18 kg

Dimensions are approximate. For precise dimensional drawings, contact us.

Related Products

LC1D0986BDS207

LC1D0986BDS207 - TeSys D contactor S207 - 4P (2NO+2NC) AC-1 20A

LC1D0986BDS207

Cat No: LC1D0986BDS207 Back Ordered expedited delivery
$198.61
LC1G1154KUEN

LC1G1154KUEN - High power contactor, TeSys Giga, 4 pole (4NO), AC-1

LC1G1154KUEN

Cat No: LC1G1154KUEN In Stock: 22 Units expedited delivery
$741.17
LC1D09D7

LC1D09D7 - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 42 V AC coil - Schneider Elec..

LC1D09D7

Cat No: LC1D09D7 In Stock: 2 Units expedited delivery
$47.15
LC1D09W7

LC1D09W7 - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 277 V AC coil - Schneider Ele..

LC1D09W7

Cat No: LC1D09W7 Back Ordered expedited delivery
Price On Request
LC1D09RD

LC1D09RD - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 440 V DC coil - Schneider Ele..

LC1D09RD

Cat No: LC1D09RD Back Ordered expedited delivery
Price On Request
LC1D09SD

LC1D09SD - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 72 V DC coil - Schneider Elec..

LC1D09SD

Cat No: LC1D09SD Back Ordered expedited delivery
Price On Request
LC1D09UD

LC1D09UD - TeSys D contactor - 3P(3 NO) - AC-3 -

LC1D09UD

Cat No: LC1D09UD Back Ordered expedited delivery
Price On Request
LC1D09ED

LC1D09ED - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 48 V DC coil - Schneider Elec..

LC1D09ED

Cat No: LC1D09ED In Stock: 48 Units expedited delivery
$57.60

Frequently Bought Together

LAD4RC3E

LAD4RC3E - D40A to D65A RC 24-48V Suppressor - Schneider Electric

LAD4RC3E

Cat No: LAD4RC3E In Stock: 69 Units expedited delivery
$43.99
LAD9V13

LAD9V13 - Set of power connections, inversing busbar, for 3P reversing contactors assembly..

LAD9V13

Cat No: LAD9V13 Back Ordered expedited delivery
$44.12
LA4DC3U

LA4DC3U - TeSys D - suppressor module - diodes - 24...250 V DC - Schneider Electric

LA4DC3U

Cat No: LA4DC3U Back Ordered expedited delivery
$43.76
LA4DA2U

LA4DA2U - TeSys D - suppressor module - RC circuit - 110...240 V AC - Schneider Electric

LA4DA2U

Cat No: LA4DA2U In Stock: 129 Units expedited delivery
$43.76
LAD4RCE

LAD4RCE - RC CIR-CLIP ON CONTACTOR D09.38 3P 24/ - Schneider Electric

LAD4RCE

Cat No: LAD4RCE In Stock: 138 Units expedited delivery
$43.52
LAD4VU

LAD4VU - TeSys D - suppressor module - varistor - 110...250 V AC - Schneider Electric

LAD4VU

Cat No: LAD4VU Back Ordered expedited delivery
$43.52
LA1SK11

LA1SK11 - TeSys SK - auxiliary contact block - 1 NO + 1 NC - Schneider Electric

LA1SK11

Cat No: LA1SK11 Back Ordered expedited delivery
$43.52
LA1KN11M

LA1KN11M - TeSys K - Auxiliary contact block - 1 NO + 1 NC - screw-clamps term - EN 50012..

LA1KN11M

Cat No: LA1KN11M Back Ordered expedited delivery
$44.52
LAEX12M7

LAEX12M7 - EasyPact TVS coil 220 VAC 50/60 Hz spare part for LC1E25 - Schneider Electric

LAEX12M7

Cat No: LAEX12M7 In Stock: 17 Units expedited delivery
$44.82
LXD1E7

LXD1E7 - TeSys D - contactor coil - LXD1 - 48 V AC 50/60 Hz for 9...¦ 38 A contactor - Sch..

LXD1E7

Cat No: LXD1E7 In Stock: 13 Units expedited delivery
$44.92

Product Line Card

No Data Available

There is no data to show you right now.

Alternate Products

3RT2018-1AB018K

3RT2018-1AB018K - power contactor, AC-3e/AC-3, 16 A, 7.5 kW / 400 V, 3-pole, 24 V AC, 50/6..

3RT2018-1AB018K

Cat No: 3RT2018-1AB018K Back Ordered expedited delivery
$43.96
3RT2018-1AB028K

3RT2018-1AB028K - power contactor, AC-3e/AC-3, 16 A, 7.5 kW / 400 V, 3-pole, 24 V AC, 50/6..

3RT2018-1AB028K

Cat No: 3RT2018-1AB028K Back Ordered expedited delivery
$43.96

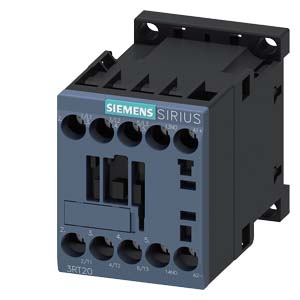

3RT2016-1BB41
