LC1K0901G7
Click to zoom
LC1K0901G7
Order on Whatsapp Schneider Electric Product Selector tool
Schneider
(No reviews yet)

LC1K0901G7 - Contactor, TeSys K, 3P, AC-3/AC-3e,

Cat No. LC1K0901G7
Category Power Contactor
Stock Back Ordered
Condition Brand New, Sealed Packaging
Product Type Power Contactor
Please contact us for the exact delivery timeline

Back Ordered

$91.19

Lead Time: 25 Working Days.

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 29 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

Schneider LC1K0901G7 Power Contactor Technical Specification

Power Contactor
AC1 Rating Not Applicable
AC3 Rating 9A
Coil Voltage 120Vac
Inbuilt Auxiliary Contact 1NC
Model K Model
No of Pole 3P
Range of Product —

Product Details

Schneider Electric LC1K0901G7 - TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 120V 50/60Hz AC coil, 1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

Schneider LC1K0901G7 dimensions and weight

Dimensions (L × W × H)
Length 6.8 cm
Width 6.2 cm
Height 4.9 cm
Weight
Net Weight 0.18 kg

Dimensions are approximate. For precise dimensional drawings, contact us.

Related Products

LC1D0986BDS207

LC1D0986BDS207 - TeSys D contactor S207 - 4P (2NO+2NC) AC-1 20A

LC1D0986BDS207

Cat No: LC1D0986BDS207 Back Ordered expedited delivery
$198.61
LC1G1154KUEN

LC1G1154KUEN - High power contactor, TeSys Giga, 4 pole (4NO), AC-1

LC1G1154KUEN

Cat No: LC1G1154KUEN In Stock: 22 Units expedited delivery
$741.17
LC1D09D7

LC1D09D7 - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 42 V AC coil - Schneider Elec..

LC1D09D7

Cat No: LC1D09D7 In Stock: 2 Units expedited delivery
$47.15
LC1D09W7

LC1D09W7 - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 277 V AC coil - Schneider Ele..

LC1D09W7

Cat No: LC1D09W7 Back Ordered expedited delivery
Price On Request
LC1D09RD

LC1D09RD - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 440 V DC coil - Schneider Ele..

LC1D09RD

Cat No: LC1D09RD Back Ordered expedited delivery
Price On Request
LC1D09SD

LC1D09SD - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 72 V DC coil - Schneider Elec..

LC1D09SD

Cat No: LC1D09SD Back Ordered expedited delivery
Price On Request
LC1D09UD

LC1D09UD - TeSys D contactor - 3P(3 NO) - AC-3 -

LC1D09UD

Cat No: LC1D09UD Back Ordered expedited delivery
Price On Request
LC1D09ED

LC1D09ED - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 48 V DC coil - Schneider Elec..

LC1D09ED

Cat No: LC1D09ED In Stock: 48 Units expedited delivery
$57.60

Frequently Bought Together

LA9D115503

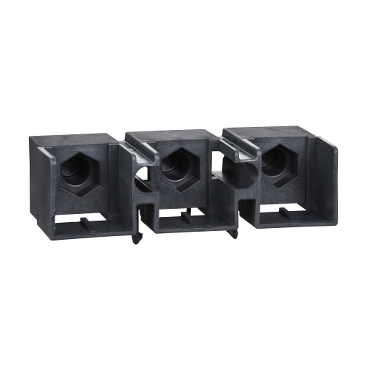

LA9D115503 - TeSys D - Terminal block - 3P - Ring lug - for LC1D115 or LC1D150 - Schneider..

LA9D115503

Cat No: LA9D115503 Back Ordered expedited delivery
$91.13
LAEX3M5

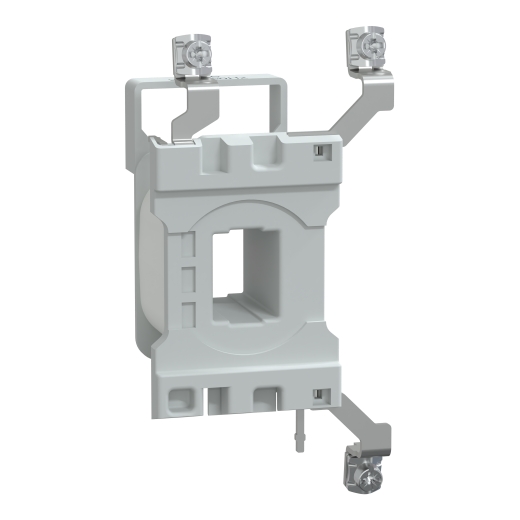

LAEX3M5 - EasyPact TVS coil 220 VAC 50 Hz spare part for LC1E40...E65 - Schneider Electric

LAEX3M5

Cat No: LAEX3M5 In Stock: 43 Units expedited delivery
$91.01
LAEM5

LAEM5 - EasyPact TVS - mechanical interlock - for LC1E120...¦E160 - Schneider Electric

LAEM5

Cat No: LAEM5 In Stock: 3 Units expedited delivery
$91.47
LAD4T3B

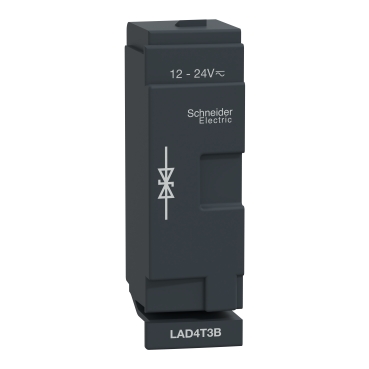

LAD4T3B - TeSys D - suppressor module - bidirectional peak limiting diode - 24 V AC/DC - S..

LAD4T3B

Cat No: LAD4T3B Back Ordered expedited delivery
$90.85
LXD3B7

LXD3B7 - TeSys D - contactor coil - LXD3 - 24 V AC 50/60 Hz for 40...¦ 65 A contactor - Sc..

LXD3B7

Cat No: LXD3B7 In Stock: 11 Units expedited delivery
$91.87
LXD3P7

LXD3P7 - TeSys D - contactor coil - LXD3 - 230 V AC 50/60 Hz for 40 - 65 A contactor - Sch..

LXD3P7

Cat No: LXD3P7 Back Ordered expedited delivery
$91.87
LAD22

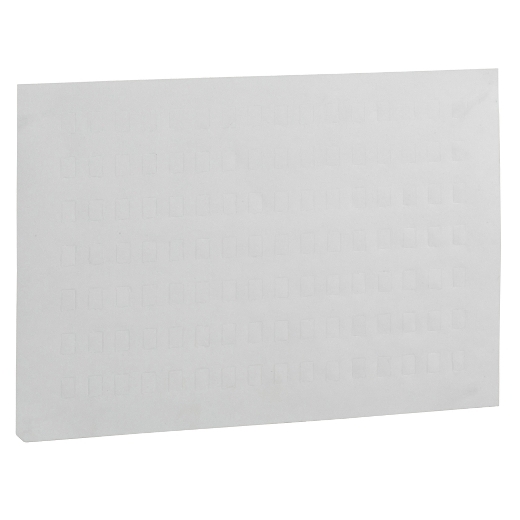

LAD22 - sheet of labels - blank - 8 x 12mm - for TeSys D - Schneider Electric
