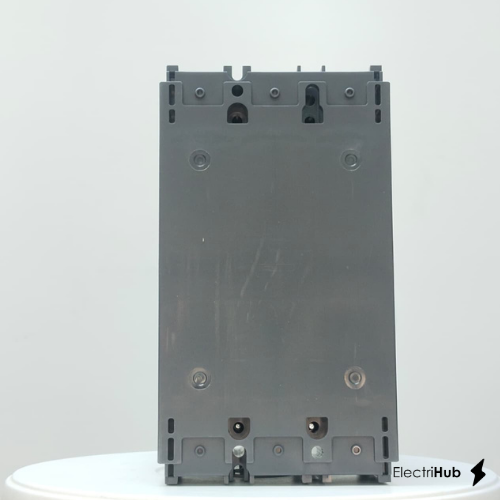

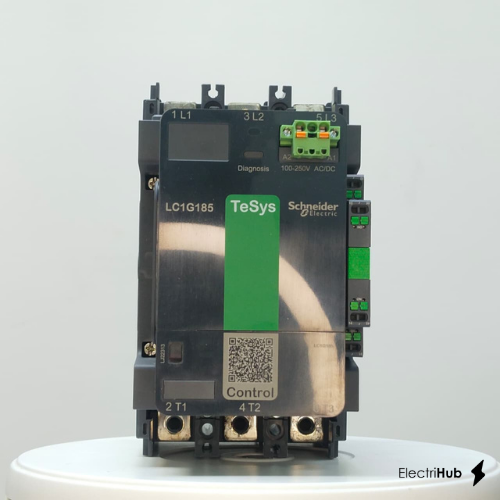

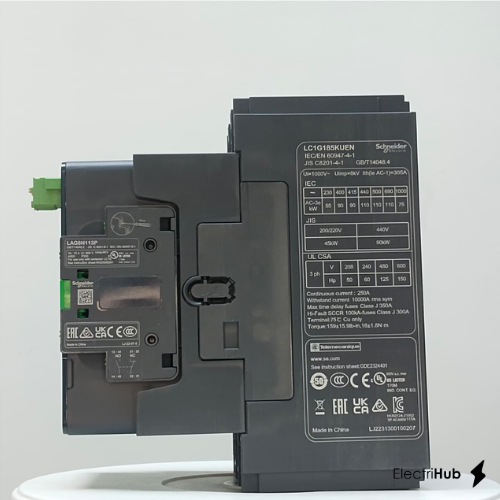

LC1G185KUEN - High power contactor, TeSys Giga, 3 pole (3NO), AC-3
| Cat No. | LC1G185KUEN |
| Category | Power Contactor |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
| Product Type | Power Contactor |
In Stock — 104 Qty
$712.13
| Quantity | Expected Delivery |
|---|---|
| 104 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 44 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
Schneider LC1G185KUEN Power Contactor Technical Specification
| Power Contactor | |
|---|---|
| AC1 Rating | 305A |
| AC3 Rating | 185A |
| Coil Voltage | 100-250Vac/dc |
| Inbuilt Auxiliary Contact | 1NO+1NC |
| Model | G Model |
| No of Pole | 3P |
| Range of Product | — |
Product Details
Schneider Electric LC1G185KUEN - TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 185A 110kW@440V,It provides a 100-250V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA),Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C,It procures high reliability and durability with 5 Mcycles mechanical durability,Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators,It is possibility to replace switching module (main contacts), enhancement contactor life,Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor,To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement,It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106,It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude,The dimension is 255mm x 108mm x 175mm (H x W x D), compact size enables panel space savings,Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach),Unique QR code provides quick access to complete product data. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
Schneider LC1G185KUEN dimensions and weight
Dimensions (L × W × H)
Length
32 cm
Width
17.5 cm
Height
25.5 cm
Weight
Net Weight
4.58 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
Related Products
Frequently Bought Together
Product Line Card
No Data Available
There is no data to show you right now.
Alternate Products
Product Overview
Schneider Electric LC1G185KUEN - TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 185A 110kW@440V,It provides a 100-250V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA),Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C,It procures high reliability and durability with 5 Mcycles mechanical durability,Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators,It is possibility to replace switching module (main contacts), enhancement contactor life,Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor,To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement,It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106,It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude,The dimension is 255mm x 108mm x 175mm (H x W x D), compact size enables panel space savings,Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach),Unique QR code provides quick access to complete product data. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Frequently Asked Questions for LC1G185KUEN
The Schneider LC1G185KUEN Power Contactor provides reliable switching for motors, heating loads, lighting systems, and industrial automation. Key features include high electrical durability, AC3/AC4 duty ratings, auxiliary contact options, coil voltage variants, compatibility with overload relays, and compact modular construction for easy panel integration.
The Schneider LC1G185KUEN Power Contactor supports multiple coil voltage options such as 24V AC/DC, 48V, 110V, 230V, and more, depending on the specific partcode. These options allow flexible use in industrial control panels, PLC-controlled systems, and automation machinery.
The Schneider LC1G185KUEN is rated for AC3 and AC4 duty categories, which define its ability to switch motors under load. AC3 ratings are ideal for standard motor starting, while AC4 supports plugging, inching, and reversing duties.
The Schneider LC1G185KUEN Power Contactor supports DIN rail or panel mounting and is designed for easy wiring with EverLink or screw terminals. Its modular design allows direct mounting with Schneider overload relays for motor starter combinations.
The Schneider LC1G185KUEN is widely used in motor starters, HVAC systems, conveyors, cranes, compressors, material handling, lighting control, and industrial automation panels due to its durability and switching reliability.
Schneider Power Contactor prices vary based on model, coil voltage, and stock availability. ElectriHub provides competitive pricing with guaranteed original Schneider products. Contact the ElectriHub sales team or request a quote for the latest price.
The technical datasheet of Schneider Power Contactors includes AC3/AC4 ratings, electrical life, coil voltage details, auxiliary contacts, terminal tightening torque, insulation voltage, operating temperature, and installation diagrams. ElectriHub can provide the official PDF on request.
Every Schneider LC1G185KUEN Power Contactor purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging — ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right Power Contactor for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right Power Contactor for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
The price of Schneider LC1G185KUEN Power Contactor depends on specifications, availability, and market conditions. You can check the latest GST-inclusive price on Electrihub India, which provides genuine products, transparent billing, and PAN India delivery.
