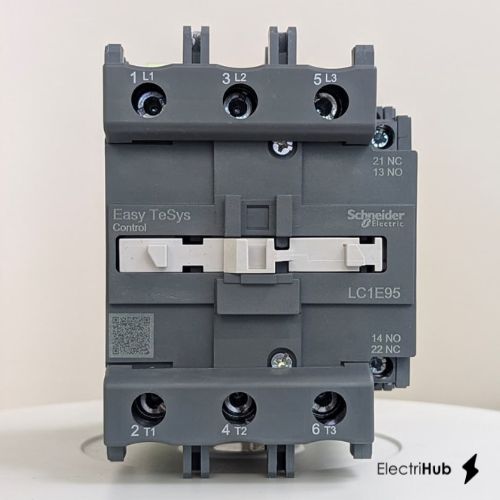

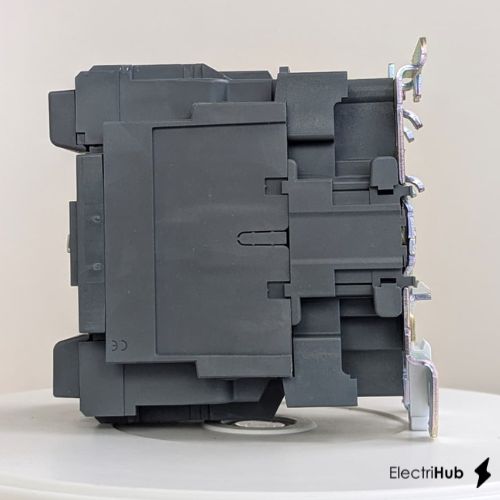

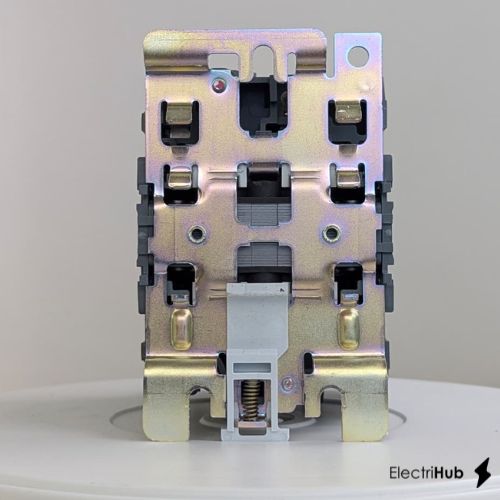

LC1E95M7 - Easy TeSys contactor 3P(3 NO) - AC-3 - 440 V 95A - 220 V AC coil - Schneider Electric
| Cat No. | LC1E95M7 |
| Category | Power Contactor |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
| Product Type | Power Contactor |
In Stock — 202 Qty
$263.24
| Quantity | Expected Delivery |
|---|---|
| 202 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 11 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
Schneider LC1E95M7 Power Contactor Technical Specification
| Power Contactor | |
|---|---|
| AC1 Rating | 120A |
| AC3 Rating | 95A |
| Coil Voltage | 220Vac |
| Inbuilt Auxiliary Contact | 1NO+1NC |
| Model | E Model |
| No of Pole | 3P |
| Range of Product | — |
Product Details
Schneider Electric LC1E95M7 - EasyPact TVS contactor 3 poles for motor applications up to 95A 45kW@440V,It provides a 220V 50/60Hz AC coil, 3NO built-in auxiliary contacts), power and control connections by screw clamp terminals,85mm width for standard operating rates up to 1200 cycles per hour,It procures standard reliability and durability with 0.9 Mcycles electrical durability AC-3 and 3 Mcycles mechanical durability,It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude,Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach). We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
Schneider LC1E95M7 dimensions and weight
Dimensions (L × W × H)
Length
11 cm
Width
15.5 cm
Height
15 cm
Weight
Net Weight
1.54 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
Related Products
Frequently Bought Together
Product Line Card
No Data Available
There is no data to show you right now.
Alternate Products
Product Overview
Schneider Electric LC1E95M7 - EasyPact TVS contactor 3 poles for motor applications up to 95A 45kW@440V,It provides a 220V 50/60Hz AC coil, 3NO built-in auxiliary contacts), power and control connections by screw clamp terminals,85mm width for standard operating rates up to 1200 cycles per hour,It procures standard reliability and durability with 0.9 Mcycles electrical durability AC-3 and 3 Mcycles mechanical durability,It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude,Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach). We are dedicatedly involved in providing an excellent quality products at Electrihub.
Frequently Asked Questions for LC1E95M7
The Schneider LC1E95M7 Power Contactor provides reliable switching for motors, heating loads, lighting systems, and industrial automation. Key features include high electrical durability, AC3/AC4 duty ratings, auxiliary contact options, coil voltage variants, compatibility with overload relays, and compact modular construction for easy panel integration.
The Schneider LC1E95M7 Power Contactor supports multiple coil voltage options such as 24V AC/DC, 48V, 110V, 230V, and more, depending on the specific partcode. These options allow flexible use in industrial control panels, PLC-controlled systems, and automation machinery.
The Schneider LC1E95M7 is rated for AC3 and AC4 duty categories, which define its ability to switch motors under load. AC3 ratings are ideal for standard motor starting, while AC4 supports plugging, inching, and reversing duties.
The Schneider LC1E95M7 Power Contactor supports DIN rail or panel mounting and is designed for easy wiring with EverLink or screw terminals. Its modular design allows direct mounting with Schneider overload relays for motor starter combinations.
The Schneider LC1E95M7 is widely used in motor starters, HVAC systems, conveyors, cranes, compressors, material handling, lighting control, and industrial automation panels due to its durability and switching reliability.
Schneider Power Contactor prices vary based on model, coil voltage, and stock availability. ElectriHub provides competitive pricing with guaranteed original Schneider products. Contact the ElectriHub sales team or request a quote for the latest price.
The technical datasheet of Schneider Power Contactors includes AC3/AC4 ratings, electrical life, coil voltage details, auxiliary contacts, terminal tightening torque, insulation voltage, operating temperature, and installation diagrams. ElectriHub can provide the official PDF on request.
Every Schneider LC1E95M7 Power Contactor purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging — ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right Power Contactor for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right Power Contactor for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
The price of Schneider LC1E95M7 Power Contactor depends on specifications, availability, and market conditions. You can check the latest GST-inclusive price on Electrihub India, which provides genuine products, transparent billing, and PAN India delivery.
Reviews & Ratings
4.5
6 reviews
5
3
4
3
3
0
2
0
1
0
We replaced an old contactor with Schneider LC1E95M7, and noticed better response time and reduced sparking.
LC1E95M7 performs well under voltage fluctuations, no tripping or abnormal behavior.
Procured LC1E95M7 from RAS Electrihub Private Limited. Genuine product, installation was easy and alignment was perfect.
Just got my LC1E95M7 delivery. The contactor is well-built and the specifications match perfectly. Great addition to our electrical panel.
Purchased LC1E95M7 after extensive research. This Schneider contactor delivers outstanding performance. Great choice for heavy-duty applications.
Ordered LC1E95M7 for our facility and it arrived promptly. The contactor is well-designed and performing reliably in our application.
