LC1D386BLS207
Click to zoom
LC1D386BLS207
Order on Whatsapp Schneider Electric Product Selector tool
Schneider
(No reviews yet)

LC1D386BLS207 - TeSys D contactor S207 - 3P (3NO) AC-3 38A

Cat No. LC1D386BLS207
Category Power Contactor
Stock Back Ordered
Condition Brand New, Sealed Packaging
Product Type Power Contactor
Please contact us for the exact delivery timeline

Back Ordered

$198.61

Lead Time: 25 Working Days.

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 12 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

Schneider LC1D386BLS207 Power Contactor Technical Specification

Power Contactor
AC1 Rating -
AC3 Rating 38A
Coil Voltage 24Vac
Inbuilt Auxiliary Contact 1NO+1NC
Model D Model
No of Pole 3P
Range of Product —

Product Details

Schneider Electric LC1D386BLS207 - TeSys Deca contactor, 3 poles (3NO), for motor control in railway applications up to 38A/690V AC-3/3e (18.5kW@400V),It provides a 24V DC low consumption coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts, connection by lugs-ring terminals,For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability,Multi standards certified (IEC, CCC, EAC, UA, TR, UKCA), Green Premium compliant (RoHS/REACh),Compact (45mm width), DIN-rail mounting or screw fixing. We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

Schneider LC1D386BLS207 dimensions and weight

Dimensions (L × W × H)
Length 10.9 cm
Width 9 cm
Height 5.4 cm
Weight
Net Weight 0.556 kg

Dimensions are approximate. For precise dimensional drawings, contact us.

Related Products

LC1D0986BDS207

LC1D0986BDS207 - TeSys D contactor S207 - 4P (2NO+2NC) AC-1 20A

LC1D0986BDS207

Cat No: LC1D0986BDS207 Back Ordered expedited delivery
$198.61
LC1G1154KUEN

LC1G1154KUEN - High power contactor, TeSys Giga, 4 pole (4NO), AC-1

LC1G1154KUEN

Cat No: LC1G1154KUEN In Stock: 22 Units expedited delivery
$741.17
LC1D09D7

LC1D09D7 - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 42 V AC coil - Schneider Elec..

LC1D09D7

Cat No: LC1D09D7 In Stock: 2 Units expedited delivery
$47.15
LC1D09W7

LC1D09W7 - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 277 V AC coil - Schneider Ele..

LC1D09W7

Cat No: LC1D09W7 Back Ordered expedited delivery
Price On Request
LC1D09RD

LC1D09RD - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 440 V DC coil - Schneider Ele..

LC1D09RD

Cat No: LC1D09RD Back Ordered expedited delivery
Price On Request
LC1D09SD

LC1D09SD - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 72 V DC coil - Schneider Elec..

LC1D09SD

Cat No: LC1D09SD Back Ordered expedited delivery
Price On Request
LC1D09UD

LC1D09UD - TeSys D contactor - 3P(3 NO) - AC-3 -

LC1D09UD

Cat No: LC1D09UD Back Ordered expedited delivery
Price On Request
LC1D09ED

LC1D09ED - TeSys D contactor - 3P(3 NO) - AC-3 - 440 V 9 A - 48 V DC coil - Schneider Elec..

LC1D09ED

Cat No: LC1D09ED In Stock: 48 Units expedited delivery
$57.60

Frequently Bought Together

LA4FVF

LA4FVF - TeSys F - suppressor module - varistor (peak limiting) - 50...110 V AC/DC - Schne..

LA4FVF

Cat No: LA4FVF Back Ordered expedited delivery
$198.36
LA9GRD10

LA9GRD10 - Remote Wear Diagnostic Module (NO), for TeSys Giga contactor LC1G - Schneider E..

LA9GRD10

Cat No: LA9GRD10 Back Ordered expedited delivery
$197.72
LA9GRD01

LA9GRD01 - Remote Wear Diagnostic Module (NC), for TeSys Giga contactor LC1G - Schneider E..

LA9GRD01

Cat No: LA9GRD01 Back Ordered expedited delivery
$197.72
LX9FG110

LX9FG110 - TeSys F - specific contactor coil - 110...115 V AC 40...400 Hz low consumption..

LX9FG110

Cat No: LX9FG110 In Stock: 63 Units expedited delivery
$200.64
LX9FG220

LX9FG220 - TeSys F - specific contactor coil - 220...230 V AC 40...400 Hz low consumption..

LX9FG220

Cat No: LX9FG220 In Stock: 66 Units expedited delivery
$200.64
LA9G3683

LA9G3683 - Contactor accessory, terminal extension, right angle rear terminal, TeSys Giga,..

LA9G3683

Cat No: LA9G3683 Back Ordered expedited delivery
$196.39
LA7D03M

LA7D03M - TeSys D thermal overload relays - remote electrical tripping - 220...230 V DC/AC..

LA7D03M

Cat No: LA7D03M Back Ordered expedited delivery
$195.06
LA9G3671

LA9G3671 - Right angled large terminal extension,TeSys Giga contactor,for LC1G115-225,3 Po..

LA9G3671

Cat No: LA9G3671 Back Ordered expedited delivery
$202.74
LA9GSW601

LA9GSW601 - Star connection bar for TeSys Giga contactor LC1G265-500 - Schneider Electric

LA9GSW601

Cat No: LA9GSW601 In Stock: 4 Units expedited delivery
$192.51
LADT03

LADT03 - TeSys D - time delay auxiliary contact block - 1 NO + 1 NC spring terminals - Sch..

LADT03

Cat No: LADT03 Back Ordered expedited delivery
$204.81

Product Line Card

No Data Available

There is no data to show you right now.

Alternate Products

3RT2027-18B408K

32A, 3P DC Power Contactor, 3RT(S0) with mirror contacts element motor rating, at 415V 50H..

3RT2027-18B408K

Cat No: 3RT2027-18B408K Back Ordered expedited delivery
$199.98
3RT2027-18M408K

3RT2027-18M408K - power contactor, AC-3e/AC-3, 32 A, 15 kW / 400 V, 3-pole, 230 V AC, 50/6..

3RT2027-18M408K

Cat No: 3RT2027-18M408K Back Ordered expedited delivery
$199.98
3RT2027-18B40

3RT2027-18B40/32A, 3P DC Power Contactor, 3RT(S0) with mirror contacts element motor ratin..

3RT2027-18B40

Cat No: 3RT2027-18B40 Back Ordered expedited delivery
$199.98
3RT2027-18M40

3RT2027-18M40/3RT2027-18M408K - power contactor, AC-3e/AC-3, 32 A, 15 kW / 400 V, 3-pole,..

3RT2027-18M40

Cat No: 3RT2027-18M40 Back Ordered expedited delivery
$199.98

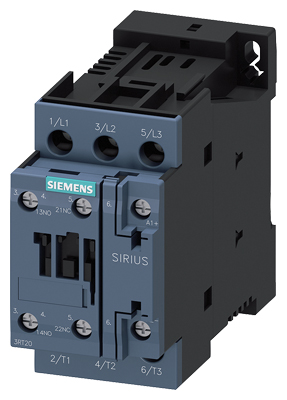

3RT2027-1BB40

3RT2027-1BB40 - Magnetic Contactor, AC-3e/AC-3, 32 A, 15 kW / 400 V, 3-pole, 24 V DC, auxi..

3RT2027-1BB40

Cat No: 3RT2027-1BB40 In Stock: 4 Units expedited delivery
$199.98
3RT2027-1BF40

3RT2027-1BF40/3RT2027-1BF408K - power contactor, AC-3e/AC-3, 32 A, 15 kW / 400 V, 3-pole,..

3RT2027-1BF40

Cat No: 3RT2027-1BF40 Back Ordered expedited delivery
$199.98
3RT20271BB408K

3RT20271BB408K - Power Contactor, AC3:15KW 1NO+1NC DC24V - Siemens

3RT20271BB408K

Cat No: 3RT20271BB408K In Stock: 60 Units expedited delivery
$199.98

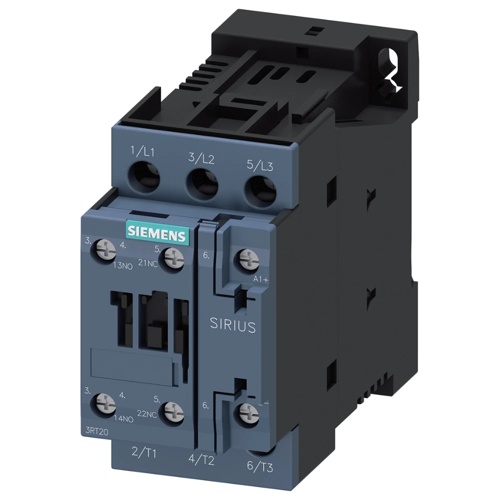

3RT2027-1BB40-8K
