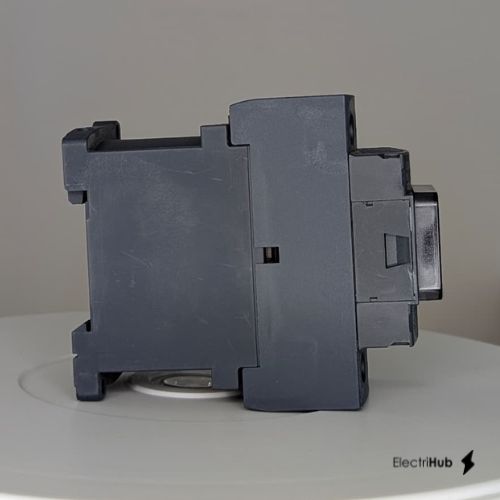

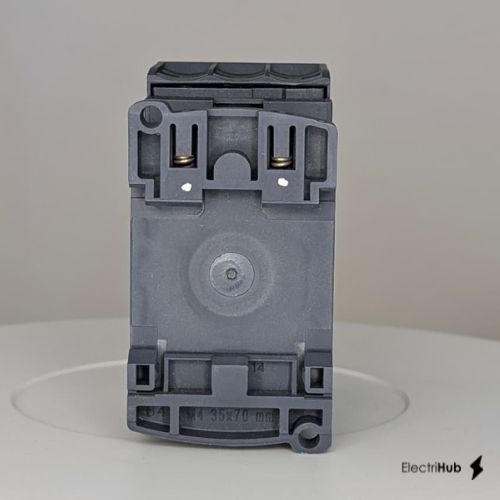

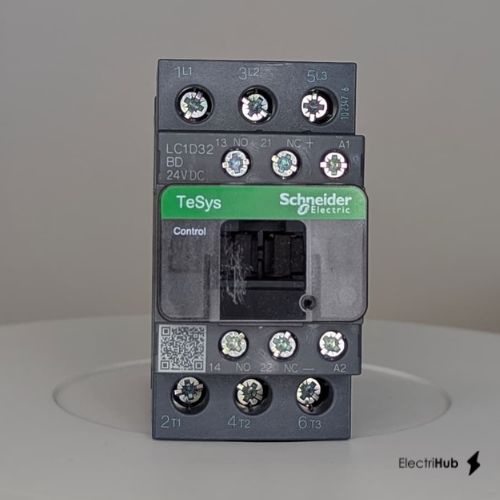

LC1D32BD - IEC contactor, TeSys Deca, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, open style - Schneider Electric
| Cat No. | LC1D32BD |
| Category | Power Contactor |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
| Product Type | Power Contactor |
In Stock — 329 Qty
$151.02
| Quantity | Expected Delivery |
|---|---|
| 329 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 11 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
Schneider LC1D32BD Power Contactor Technical Specification
| Power Contactor | |
|---|---|
| AC1 Rating | 50A |
| AC3 Rating | 32A |
| Coil Voltage | 24Vdc |
| Inbuilt Auxiliary Contact | 1NO+1NC |
| Model | D Model |
| No of Pole | 3P |
| Range of Product | TeSys Deca |
Product Details
Schneider Electric LC1D32BD Contactor - TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60ðC, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 7.5HP at 200 to 208VAC, 10HP at 240VAC, 20HP at 480VAC and 30HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 80A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.98 inches deep. It weighs 1.18 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
Schneider LC1D32BD dimensions and weight
Dimensions (L × W × H)
Length
11.2 cm
Width
9.2 cm
Height
5 cm
Weight
Net Weight
0.585 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
Related Products
Frequently Bought Together
Product Line Card
No Data Available
There is no data to show you right now.
Alternate Products
Product Overview
Schneider Electric LC1D32BD Contactor - TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60ðC, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 7.5HP at 200 to 208VAC, 10HP at 240VAC, 20HP at 480VAC and 30HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 80A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.98 inches deep. It weighs 1.18 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Frequently Asked Questions for LC1D32BD
The Schneider LC1D32BD Power Contactor provides reliable switching for motors, heating loads, lighting systems, and industrial automation. Key features include high electrical durability, AC3/AC4 duty ratings, auxiliary contact options, coil voltage variants, compatibility with overload relays, and compact modular construction for easy panel integration.
The Schneider LC1D32BD Power Contactor supports multiple coil voltage options such as 24V AC/DC, 48V, 110V, 230V, and more, depending on the specific partcode. These options allow flexible use in industrial control panels, PLC-controlled systems, and automation machinery.
The Schneider LC1D32BD is rated for AC3 and AC4 duty categories, which define its ability to switch motors under load. AC3 ratings are ideal for standard motor starting, while AC4 supports plugging, inching, and reversing duties.
The Schneider LC1D32BD Power Contactor supports DIN rail or panel mounting and is designed for easy wiring with EverLink or screw terminals. Its modular design allows direct mounting with Schneider overload relays for motor starter combinations.
The Schneider LC1D32BD is widely used in motor starters, HVAC systems, conveyors, cranes, compressors, material handling, lighting control, and industrial automation panels due to its durability and switching reliability.
Schneider Power Contactor prices vary based on model, coil voltage, and stock availability. ElectriHub provides competitive pricing with guaranteed original Schneider products. Contact the ElectriHub sales team or request a quote for the latest price.
The technical datasheet of Schneider Power Contactors includes AC3/AC4 ratings, electrical life, coil voltage details, auxiliary contacts, terminal tightening torque, insulation voltage, operating temperature, and installation diagrams. ElectriHub can provide the official PDF on request.
Every Schneider LC1D32BD Power Contactor purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging — ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right Power Contactor for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right Power Contactor for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
The price of Schneider LC1D32BD Power Contactor depends on specifications, availability, and market conditions. You can check the latest GST-inclusive price on Electrihub India, which provides genuine products, transparent billing, and PAN India delivery.
