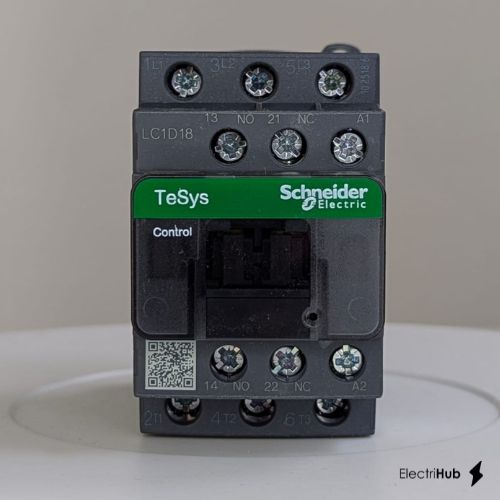

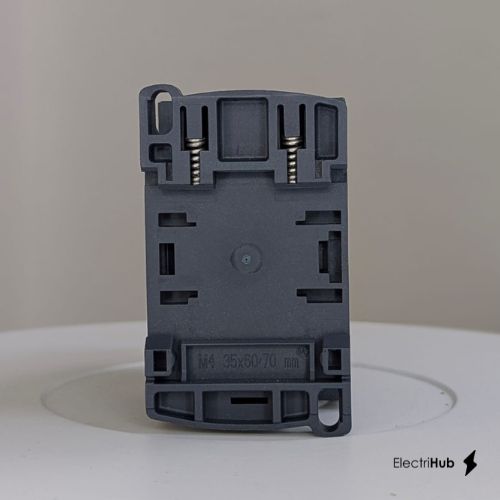

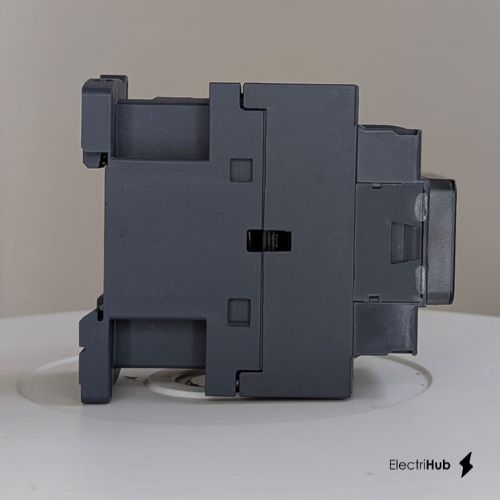

LC1D18G7 - Contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open - Schneider Electric

Cat No.	LC1D18G7
Category	Power Contactor
Stock	In Stock
Condition	Brand New, Sealed Packaging
Product Type	Power Contactor

Please contact us for the exact delivery timeline

In Stock — 49 Qty

$49.72

Quantity	Expected Delivery
49 Units	25 Business Days

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 33 users

Secure Payment with

Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe

Need help on Inquiry? Call Us on +1 (888) 293-7436

Warranty Guarantee

100% Original Products

EEE Buyer Protection

World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

Schneider LC1D18G7 Power Contactor Technical Specification

Power Contactor
AC1 Rating	32A
AC3 Rating	18A
Coil Voltage	120Vac
Inbuilt Auxiliary Contact	1NO+1NC
Model	D Model
No of Pole	3P
Range of Product	TeSys Deca

Product Details

Schneider Electric LC1D18G7 Contactor - TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60ÃÂ°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 5HP at 200-208VAC, 5HP at 240VAC, 10HP at 480VAC and 15HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 40A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.73 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

Schneider LC1D18G7 dimensions and weight

Dimensions (L × W × H)

Length 12 cm

Width 9.5 cm

Height 5.5 cm

Weight

Net Weight 0.33 kg

Dimensions are approximate. For precise dimensional drawings, contact us.

Frequently Bought Together

Product Line Card

No Data Available

There is no data to show you right now.

Alternate Products

Product Overview

Frequently Asked Questions for LC1D18G7

The Schneider LC1D18G7 Power Contactor provides reliable switching for motors, heating loads, lighting systems, and industrial automation. Key features include high electrical durability, AC3/AC4 duty ratings, auxiliary contact options, coil voltage variants, compatibility with overload relays, and compact modular construction for easy panel integration.

The Schneider LC1D18G7 Power Contactor supports multiple coil voltage options such as 24V AC/DC, 48V, 110V, 230V, and more, depending on the specific partcode. These options allow flexible use in industrial control panels, PLC-controlled systems, and automation machinery.

The Schneider LC1D18G7 is rated for AC3 and AC4 duty categories, which define its ability to switch motors under load. AC3 ratings are ideal for standard motor starting, while AC4 supports plugging, inching, and reversing duties.

The Schneider LC1D18G7 Power Contactor supports DIN rail or panel mounting and is designed for easy wiring with EverLink or screw terminals. Its modular design allows direct mounting with Schneider overload relays for motor starter combinations.

The Schneider LC1D18G7 is widely used in motor starters, HVAC systems, conveyors, cranes, compressors, material handling, lighting control, and industrial automation panels due to its durability and switching reliability.

Schneider Power Contactor prices vary based on model, coil voltage, and stock availability. ElectriHub provides competitive pricing with guaranteed original Schneider products. Contact the ElectriHub sales team or request a quote for the latest price.

The technical datasheet of Schneider Power Contactors includes AC3/AC4 ratings, electrical life, coil voltage details, auxiliary contacts, terminal tightening torque, insulation voltage, operating temperature, and installation diagrams. ElectriHub can provide the official PDF on request.

Every Schneider LC1D18G7 Power Contactor purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging ‚Äî ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right Power Contactor for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.

The Schneider Square D LC1D18G7 is engineered for high reliability and industrial-grade performance. It offers robust protection, long electrical endurance, and compatibility with Square D control and protection systems. Its compact design, standardized mounting, and precise operating mechanisms make it ideal for demanding industrial applications.

The Schneider Square D LC1D18G7 is typically used in motor control centers, protection panels, automation circuits, and machinery requiring dependable switching or motor protection. It is widely used in HVAC systems, industrial motors, compressors, pumps, and other electric control assemblies due to its high durability and performance stability.

Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.

Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.

Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.

The price of Schneider LC1D18G7 Power Contactor depends on specifications, availability, and market conditions. You can check the latest GST-inclusive price on Electrihub India, which provides genuine products, transparent billing, and PAN India delivery.
