Schneider
(No reviews yet)

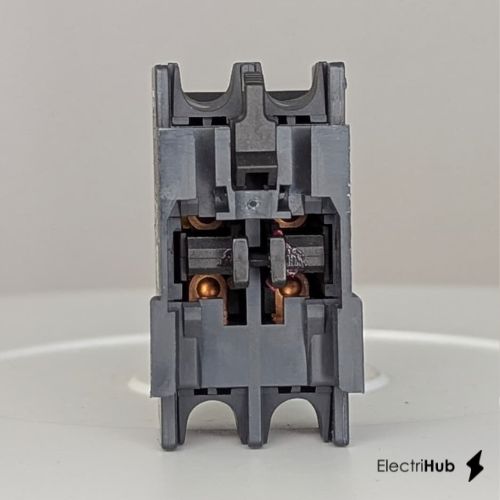

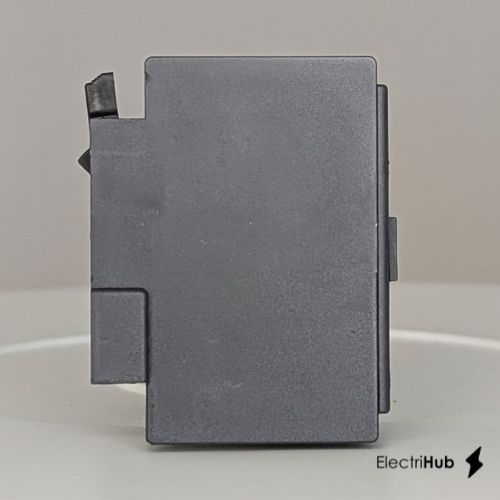

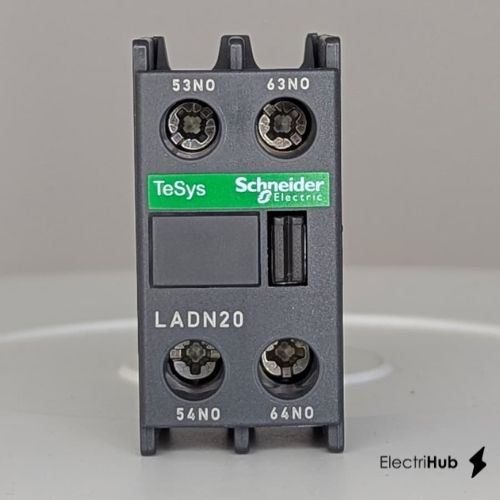

LADN20 - Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals - Schneider Electric

Cat No. LADN20
Category Power Contactor Accessories
Stock In Stock
Condition Brand New, Sealed Packaging
Product Type Power Contactor Accessories

In Stock — 615 Qty

$14.31
Quantity Expected Delivery
615 Units 25 Business Days

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 10 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

Schneider LADN20 Power Contactor Accessories Technical Specification

Power Contactor Accessories
Contacts —
Other Details Contactor
Range of Product —
Sub Family Aux. Contact
Type D/F Model

Product Details

Schneider Electric LADN20 - TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD,It provides 2NO contacts rated up to 10A/690V AC, connection by screw clamp terminals,Clip-on front mounting, it procures high reliability and durability,Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

Schneider LADN20 dimensions and weight

Dimensions (L × W × H)
Length 4.3 cm
Width 2.8 cm
Height 5 cm
Weight
Net Weight 0.034 kg

Dimensions are approximate. For precise dimensional drawings, contact us.

Related Products

Frequently Bought Together

Product Line Card

No Data Available

There is no data to show you right now.

Alternate Products

Product Overview

Schneider Electric LADN20 - TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD,It provides 2NO contacts rated up to 10A/690V AC, connection by screw clamp terminals,Clip-on front mounting, it procures high reliability and durability,Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). We are dedicatedly involved in providing an excellent quality products at Electrihub.

Frequently Asked Questions for LADN20

Every Schneider LADN20 Power Contactor Accessories purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging — ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.

Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right Power Contactor Accessories for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
The Schneider LADN20 is an auxiliary contact block designed to provide additional signaling and control logic for power contactors. In Indian industrial automation, it is commonly used for electrical interlocking, remote status indication (ON/OFF), and PLC feedback to ensure safe motor operation.
The LADN20 model is specifically designed for a particular range. For instance, LA1K series are for TeSys K (compact) contactors, while LADN/LAD8 series are for TeSys D/Deca contactors. It is essential to verify the frame size to ensure a secure mechanical snap-on fit within your control panel.
The LADN20 features high-reliability contacts rated for standard industrial control voltages used in India, such as 110V, 230V, or 415V AC. It is engineered to handle low-level switching currents (typically up to 10A thermal current) with high mechanical durability exceeding millions of cycles.
By adding the LADN20 to your power contactor, you can implement safety interlocks that prevent simultaneous operation of conflicting loads. Its finger-safe (IP20) terminal design complies with international safety standards, protecting maintenance personnel in Indian factories from accidental contact with live parts.
The LADN20 features a modular, tool-free 'clip-on' mounting mechanism. It can be easily mounted on the front or side of the compatible contactor. In the Indian context, this modularity allows for quick field upgrades and reduces downtime during panel maintenance or logic modification.
The Schneider LADN20 provides a rated insulation voltage (U_i) of 690V according to IEC 60947-5-1 and 600V for UL/CSA standards. This high dielectric strength makes it suitable for rigorous industrial power distribution in India.
The LADN20 is an instantaneous auxiliary contact block providing NO and NC combinations. It features a non-overlap time of 1.5ms between the NC and NO contacts, preventing short circuits during state transitions in control logic.
Designed for front or side mounting on TeSys Deca contactors, the LADN20 operates within a temperature range of -5^\circ C to +60^\circ C. It holds an IP20 rating, providing finger-safe protection as per VDE 0106 standards.
The LADN20 supports a high operational frequency of up to 3600 cycles per hour. It is tested for vibration resistance (4 gn) and shock resistance (15 gn), ensuring stability in vibrating machinery and heavy industrial panels.
Yes, the LADN20 incorporates mechanically linked contacts (IEC 60947-5-1) and mirror contacts (IEC 60947-4-1). This makes it a reliable component for safety-critical feedback loops and emergency stop circuits in Indian industrial plants.
