GV2ME10 GV2ME10 GV2ME10
/ 3
Schneider
(No reviews yet)

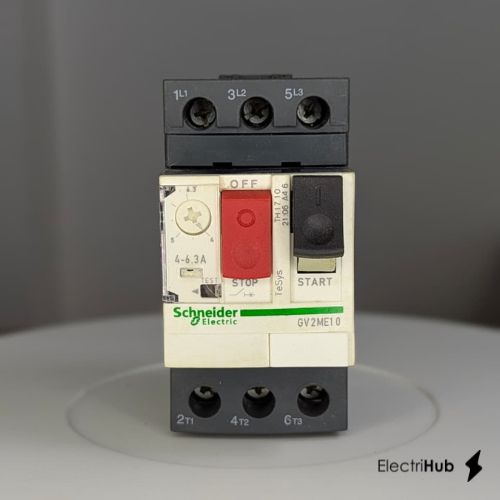

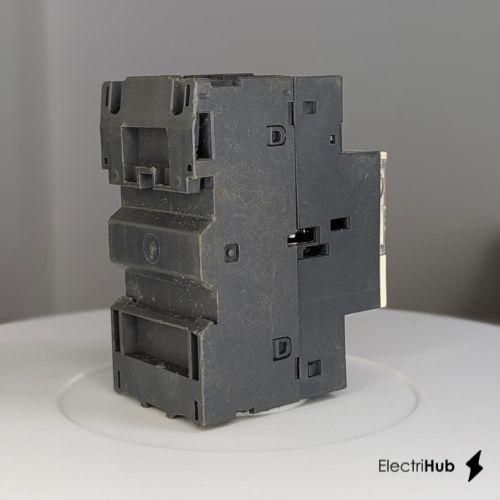

GV2ME10 - Manual Motor Starter, TeSys Deca, thermal magnetic circuit protector, push buttons, 4 to 6.3 A, screw clamp - Schneider Electric

Cat No. GV2ME10
Category MPCB
Stock In Stock
Condition Brand New, Sealed Packaging
Product Type MPCB

In Stock — 163 Qty

$96.42
Quantity Expected Delivery
163 Units 25 Business Days

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 42 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

Schneider GV2ME10 MPCB Technical Specification

MPCB
Actuator Type —
Application Motor
Breaking Cap 100kA
OL Setting —
Protection —
Range of Product TeSys GV2
Rating 6.3A
Release TM Release
SC Setting —
Type GV2-M

Product Details

Schneider Electric GV2ME10 Manual Motor Starter - The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 4 ampere to 6.3 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX). We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

Schneider GV2ME10 dimensions and weight

Dimensions (L × W × H)
Length 9.5 cm
Width 8.5 cm
Height 4.5 cm
Weight
Net Weight 0.271 kg

Dimensions are approximate. For precise dimensional drawings, contact us.

Related Products

Frequently Bought Together

Product Line Card

No Data Available

There is no data to show you right now.

Alternate Products

Product Overview

Schneider Electric GV2ME10 Manual Motor Starter - The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 4 ampere to 6.3 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX). We are dedicatedly involved in providing an excellent quality products at Electrihub.

Frequently Asked Questions for GV2ME10

Every Schneider GV2ME10 purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging — ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.

Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right MPCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
The Schneider Electric GV2ME10 MPCB provides integrated motor protection with adjustable thermal overload protection, magnetic short circuit protection, phase loss sensitivity, compact design, and high reliability for motor control applications.
It is widely used in motor control centers, industrial machinery, pump and compressor panels, conveyors, HVAC systems, and automation panels for reliable motor protection.
It protects motors against overload, short circuit, phase failure, and locked rotor conditions by tripping the circuit before thermal or electrical damage occurs.
Check motor full load current (FLC), adjustment range, short circuit breaking capacity, trip class, coordination with contactors, and compatibility with Schneider accessories.
Ensure correct line and load wiring, proper torque tightening, correct current setting as per motor FLC, and installation according to Schneider Electric wiring guidelines.
The official datasheet for GV2ME10 is available on Electrihub with wiring diagrams, trip curves, and technical specifications.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
The price of Schneider GV2ME10 MPCB depends on specifications, availability, and market conditions. You can check the latest GST-inclusive price on Electrihub India, which provides genuine products, transparent billing, and PAN India delivery.
The Schneider GV2ME10 MPCB provides integrated thermal-magnetic protection. The thermal element offers adjustable overload protection for the motor, while the magnetic element provides instantaneous short-circuit protection. It is designed to meet IEC 60947-4-1 standards, ensuring high reliability for global industrial motor control applications.
The GV2ME10 MPCB features a high ultimate breaking capacity (Icu) and service breaking capacity (Ics), typically ranging from 10kA to 100kA depending on the voltage (e.g., 400/415V). This technical robustness allows it to safely interrupt high fault currents in global industrial power networks without damaging the device.
Yes, the GV2ME10 is equipped with a phase-failure sensitive mechanism. It detects an unbalance or loss of phase in the motor supply, tripping the breaker to prevent motor overheating and winding damage, which is a critical safety feature for 3-phase motor installations worldwide.
The GV2ME10 features a front-facing dial for setting the thermal trip current. You should set the dial to match the motor's Full Load Amps (FLA) as indicated on the motor nameplate. The GV2ME10 is compensated for ambient temperature variations, ensuring accurate protection across different global climates.
Absolutely. The GV2ME10 is designed for both protection and manual control. Its ergonomic toggle or rotary handle allows for local ON/OFF switching, making it a space-saving 2-in-1 solution for motor starting and circuit protection in international control panels.
