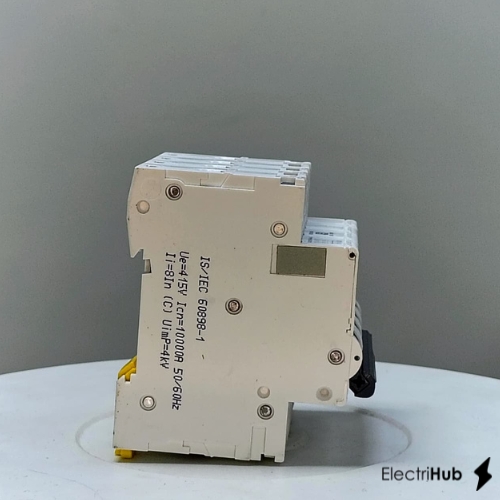

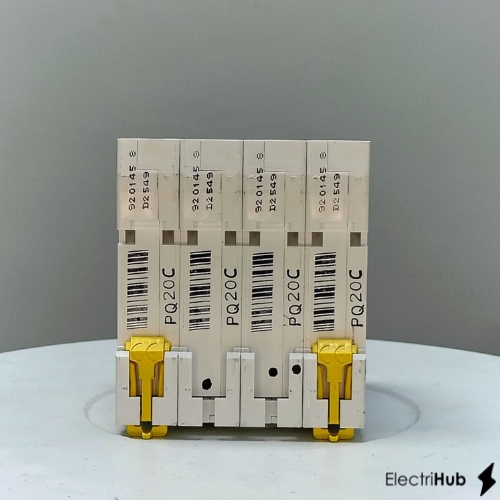

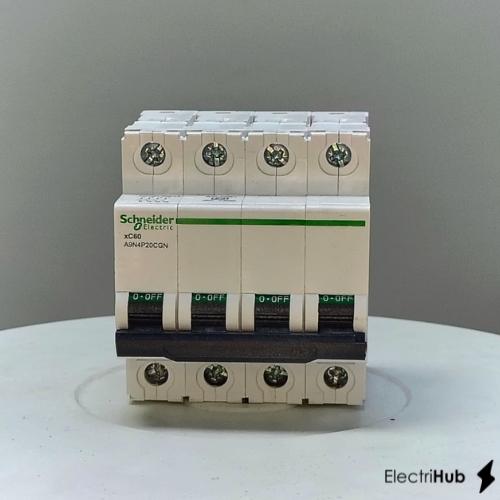

A9N4P20CGN - Miniature circuit breaker (MCB), Acti9 xC60, 4P, 20A, C curve, 10000A (IS/IEC60898-1) - Schneider Electric
| Cat No. | A9N4P20CGN |
| Category | MCB |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
| Product Type | MCB |
In Stock — 740 Qty
$39.08
| Quantity | Expected Delivery |
|---|---|
| 740 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 21 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
Schneider A9N4P20CGN MCB Technical Specification
| MCB | |
|---|---|
| Breaking Cap | 10kA |
| Curve | C |
| Model | Acti9 |
| No of pole | 4P |
| Range of Product | — |
| Rating | 20A |
Product Details
Schneider Electric A9N4P20CGN - This Acti9 xC60 is a low voltage biconnect miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles and 20A In rated current with D tripping curve. The rated short circuit breaking capacity is up to 10000A at 380VAC - 415VAC conforming to IS/IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of the green strip guarantees physical opening of the contacts. It allows operations to be performed on the downstream circuit in complete safety. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 20000 cycles. The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 8 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
Schneider A9N4P20CGN dimensions and weight
Dimensions (L × W × H)
Length
7.4 cm
Width
7.15 cm
Height
8.1 cm
Weight
Net Weight
0.46 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
Related Products
Frequently Bought Together
Product Line Card
No Data Available
There is no data to show you right now.
Alternate Products
Product Overview
Schneider Electric A9N4P20CGN - This Acti9 xC60 is a low voltage biconnect miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles and 20A In rated current with D tripping curve. The rated short circuit breaking capacity is up to 10000A at 380VAC - 415VAC conforming to IS/IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of the green strip guarantees physical opening of the contacts. It allows operations to be performed on the downstream circuit in complete safety. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 20000 cycles. The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 8 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Frequently Asked Questions for A9N4P20CGN
Schneider MCB A9N4P20CGN offers high breaking capacity depending on its pole and rating. You can check exact kA rating using ElectriHub MCB filters such as poles, current rating, and curve type.
Yes, Schneider MCB A9N4P20CGN is designed for home distribution systems and ensures protection against overload and short circuits. Select your pole and ampere rating from the ElectriHub MCB filter.
Schneider MCB A9N4P20CGN is available in B, C, and D curve options depending on the application. Use the curve filter on ElectriHub to verify available options.
To select the right ampere rating for Schneider MCB A9N4P20CGN, check your load requirement and matching poles. ElectriHub rating filter helps you choose from 1A to 63A.
Yes, Schneider MCB A9N4P20CGN supports standard DIN rail mounting for easy installation in all household and industrial panels.
Every Schneider A9N4P20CGN MCB purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging — ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right MCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right MCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
