A9N3P06D
A9N3P06D
A9N3P06D
A9N3P06D
Click to zoom
A9N3P06D A9N3P06D A9N3P06D A9N3P06D
/ 4
Order on Whatsapp Schneider Electric Product Selector tool
Schneider
(No reviews yet)

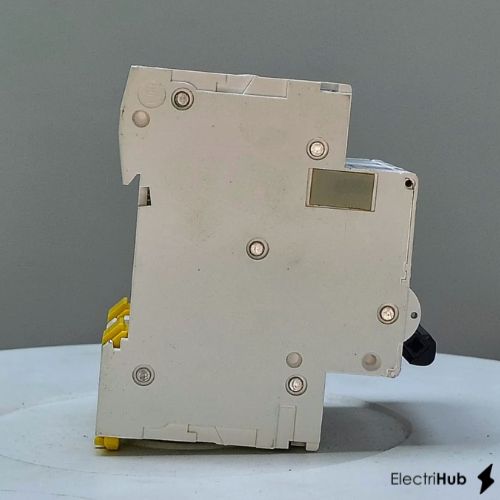

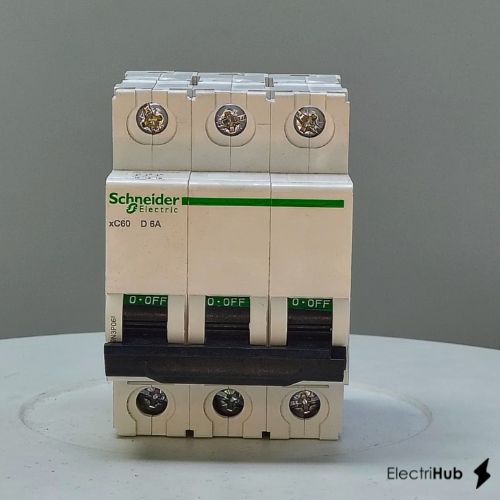

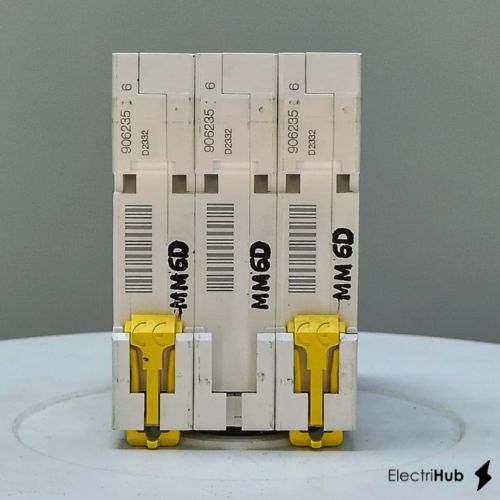

A9N3P06D - miniature circuit breaker AC xC60 AC 3 poles AC 6A AC D curve - Schneider Electric

Cat No. A9N3P06D
Category MCB
Stock In Stock
Condition Brand New, Sealed Packaging
Product Type MCB
Please contact us for the exact delivery timeline

In Stock — 189 Qty

$33.20
Quantity Expected Delivery
189 Units 25 Business Days

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 33 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

Schneider A9N3P06D MCB Technical Specification

MCB
Breaking Cap 10kA
Curve D
Model xC60
No of pole 3P
Range of Product —
Rating 6A

Product Details

Schneider Electric A9N3P06DGN This Acti9 xC60 is a multistandard low voltage biconnect miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 6A In rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10000 A at 415VAC conforming to EN/IEC 60898-1 standard and 10000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The presence of the green strip guarantees physical opening of the contacts. It allows operations to be performed on the downstream circuit in complete safety. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 20000 cycles. The Ue operational voltage is going from 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 85mm x (D) 77.5mm. TheWeight is 0.31kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 85°C.We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

Schneider A9N3P06D dimensions and weight

Dimensions (L × W × H)
Length 8.2 cm
Width 7.6 cm
Height 5.6 cm
Weight
Net Weight 0.32 kg

Dimensions are approximate. For precise dimensional drawings, contact us.
