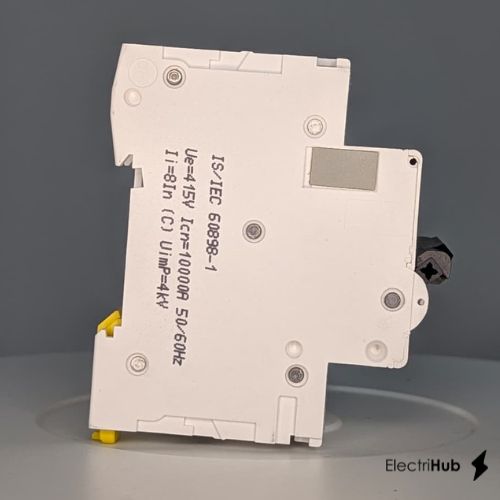

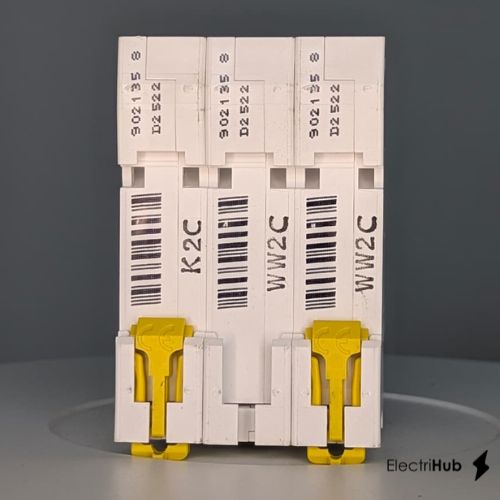

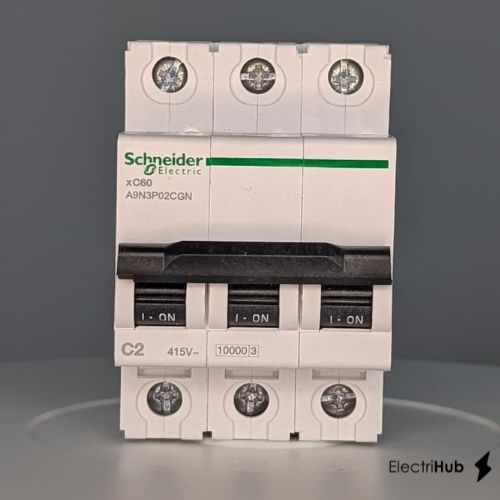

A9N3P02CGN - Miniature circuit breaker (MCB), Acti9 xC60, 3P, 2A, C curve, 10000A (IS/IEC60898-1) - Schneider Electric

Cat No. A9N3P02CGN
Category MCB
Stock In Stock
Condition Brand New, Sealed Packaging
Product Type MCB
Please contact us for the exact delivery timeline

In Stock — 111 Qty

$39.94
Quantity Expected Delivery
111 Units 25 Business Days

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 48 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

Schneider A9N3P02CGN MCB Technical Specification

MCB
Breaking Cap 10kA
Curve C
Model Acti9
No of pole 3P
Range of Product —
Rating 2A

Product Details

Schneider Electric A9N3P02CGN - This Acti9 xC60 is a low voltage biconnect miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 2A In rated current with C tripping curve. The rated short circuit breaking capacity is up to 10000A at 380VAC - 415VAC conforming to IS/IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of the green strip guarantees physical opening of the contacts. It allows operations to be performed on the downstream circuit in complete safety. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 20000 cycles. The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail or Vertical Fishbone Busbar for modular installation. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

Schneider A9N3P02CGN dimensions and weight

Dimensions (L × W × H)
Length 7.4 cm
Width 5.35 cm
Height 8.1 cm
Weight
Net Weight 0.33 kg

Dimensions are approximate. For precise dimensional drawings, contact us.
