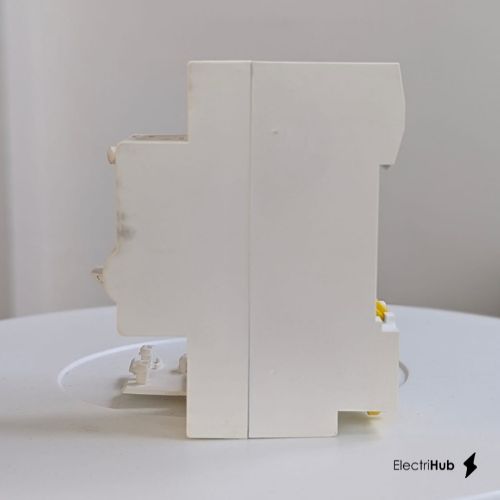

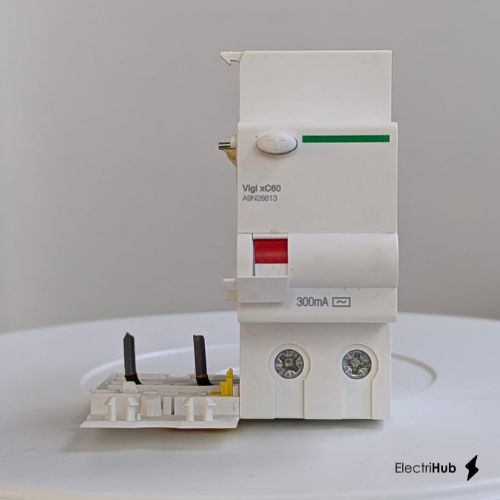

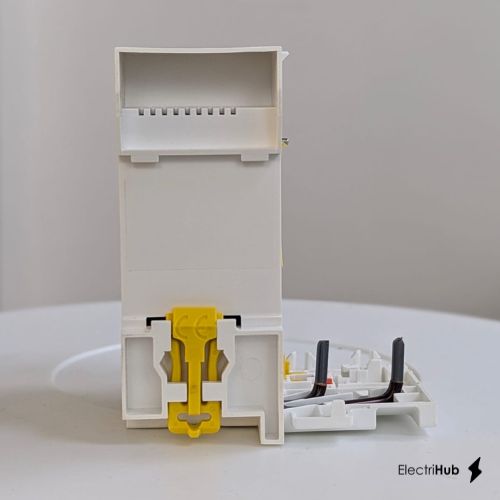

A9N26613 - VIGI XC60- earth leakage add-on block 2P 63A AC 300MA - Schneider Electric
| Cat No. | A9N26613 |
| Category | RCCB/ELCB |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
In Stock — 35 Qty
$124.20
| Quantity | Expected Delivery |
|---|---|
| 35 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 12 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
No Data Available
There is no data to show you right now.
Product Details
Schneider Electric A9N26613 - This Acti9 Vigi xC60 is a modular add-on residual current devices,It is a 2P and rated current is 63A,The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology,This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards,This product is compliant with EN/IEC 61009-2-1 and EN/IEC 61009-1 standard,The Ue rated operational voltage is from 230VAC to 240VAC,The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV,The pollution degree is 3,It can be mounted on DIN rail. The width in 9mm pitches is 4,The dimensions are (W) 72mm x (H) 87mm x (D) 74.5mm. The weight is 150g,The degree of protection is IP20 and IP40 in an enclosure,The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
Schneider A9N26613 dimensions and weight
Dimensions (L × W × H)
Length
11.5 cm
Width
8.5 cm
Height
7.5 cm
Weight
Net Weight
0.5 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
Related Products
Frequently Bought Together
No Data Available
There is no data to show you right now.
Product Line Card
No Data Available
There is no data to show you right now.
Alternate Products
Product Overview
Schneider Electric A9N26613 - This Acti9 Vigi xC60 is a modular add-on residual current devices,It is a 2P and rated current is 63A,The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology,This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards,This product is compliant with EN/IEC 61009-2-1 and EN/IEC 61009-1 standard,The Ue rated operational voltage is from 230VAC to 240VAC,The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV,The pollution degree is 3,It can be mounted on DIN rail. The width in 9mm pitches is 4,The dimensions are (W) 72mm x (H) 87mm x (D) 74.5mm. The weight is 150g,The degree of protection is IP20 and IP40 in an enclosure,The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Frequently Asked Questions for A9N26613
Every Schneider A9N26613 RCCB/ELCB purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging — ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right RCCB/ELCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right RCCB/ELCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
