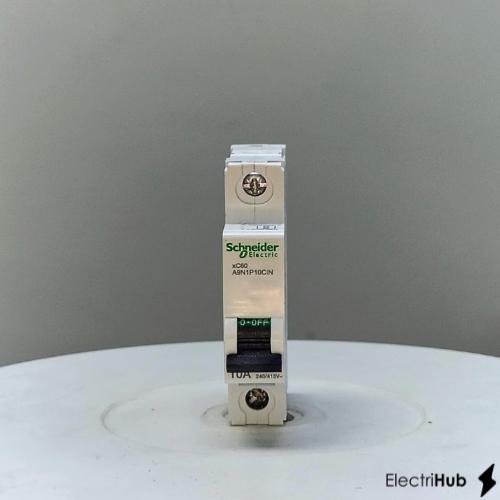

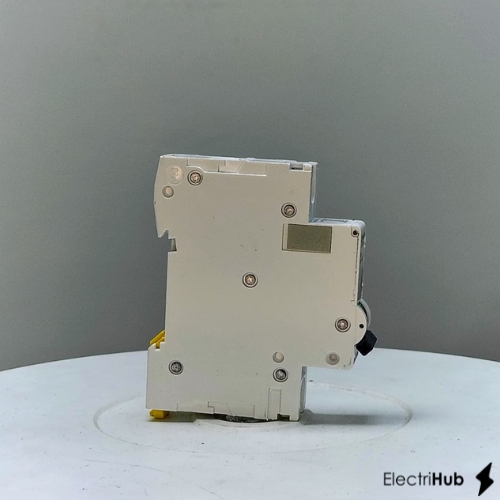

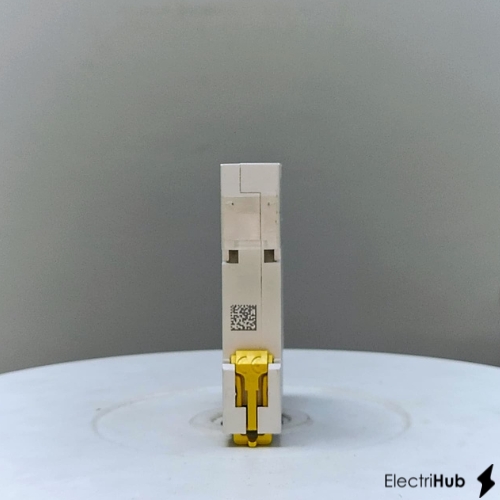

A9N1P10CIN - Miniature circuit breaker (MCB), Acti9 xC60, 1P, 10A, C curve, 10kA (IS/IEC60947-2) - Schneider Electric
| Cat No. | A9N1P10CIN |
| Category | MCB |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
| Product Type | MCB |
In Stock — 118 Qty
$6.69
| Quantity | Expected Delivery |
|---|---|
| 118 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 20 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
Schneider A9N1P10CIN MCB Technical Specification
| MCB | |
|---|---|
| Breaking Cap | 10kA |
| Curve | C |
| Model | A9N |
| No of pole | 1P |
| Range of Product | — |
| Rating | 10A |
Product Details
Schneider Electric A9N1P10CIN - This Acti9 xC60 is a low voltage biconnect miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 10A In rated current with D tripping curve. The rated short circuit breaking capacity is up to 10 kA at 220VAC - 240VAC conforming to IS/IEC 60947-2 standard. The MCB is suitability for isolation in the industrial sector as per IS/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of the green strip guarantees physical opening of the contacts. It allows operations to be performed on the downstream circuit in complete safety. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 20000 cycles. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail or Vertical Fishbone Busbar for modular installation. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). According to IEC 60529 standard, the degree of protection is IP20 for the device. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
Schneider A9N1P10CIN dimensions and weight
Dimensions (L × W × H)
Length
7.2 cm
Width
1.8 cm
Height
8.1 cm
Weight
Net Weight
0.11 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
Related Products
Frequently Bought Together
Product Line Card
No Data Available
There is no data to show you right now.
Alternate Products
Product Overview
Schneider Electric A9N1P10CIN - This Acti9 xC60 is a low voltage biconnect miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 10A In rated current with D tripping curve. The rated short circuit breaking capacity is up to 10 kA at 220VAC - 240VAC conforming to IS/IEC 60947-2 standard. The MCB is suitability for isolation in the industrial sector as per IS/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of the green strip guarantees physical opening of the contacts. It allows operations to be performed on the downstream circuit in complete safety. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 20000 cycles. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail or Vertical Fishbone Busbar for modular installation. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). According to IEC 60529 standard, the degree of protection is IP20 for the device. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Frequently Asked Questions for A9N1P10CIN
Every Schneider A9N1P10CIN MCB purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging — ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right MCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right MCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Users report that the Schneider Electric A9N1P10CIN MCB offers excellent long-term reliability due to its robust thermal-magnetic mechanism, consistent tripping performance, and durable build quality suitable for continuous operation.
According to installer and user feedback, the Schneider Electric A9N1P10CIN MCB trips quickly and accurately during overloads and short circuits, helping prevent cable overheating and equipment damage.
Yes, many electricians prefer the Schneider Electric A9N1P10CIN MCB for residential and commercial distribution boards because of its compact design, stable performance, and compliance with IEC safety standards.
Electricians often highlight easy DIN-rail mounting, strong terminal grip, clear ON/OFF indication, and consistent tripping characteristics as major advantages of the Schneider Electric A9N1P10CIN MCB.
Most reviews indicate minimal issues when the MCB is correctly selected and installed. Proper current rating selection and torque tightening are key to ensuring optimal performance.
Customers feel the Schneider Electric A9N1P10CIN MCB offers good value for money due to its safety features, durability, and brand reliability, making it a preferred choice over low-cost alternatives.
The official datasheet for the Schneider Electric A9N1P10CIN MCB is available on Electrihub, including technical specifications, tripping curves, and installation guidelines.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
The price of Schneider A9N1P10CIN MCB depends on specifications, availability, and market conditions. You can check the latest GST-inclusive price on Electrihub India, which provides genuine products, transparent billing, and PAN India delivery.
