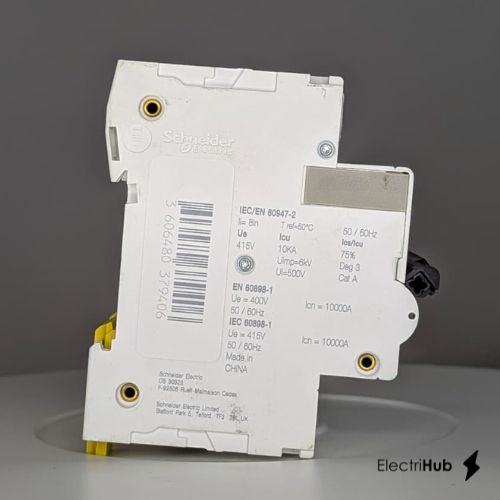

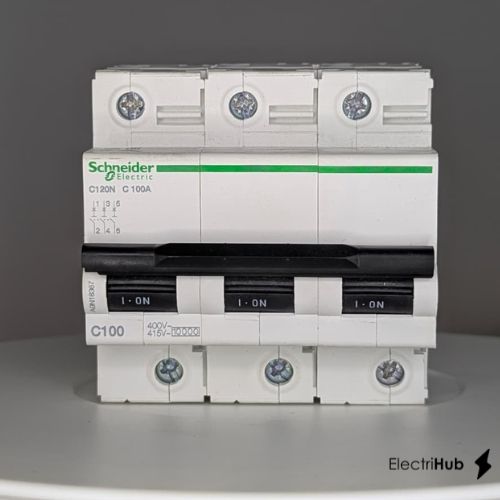

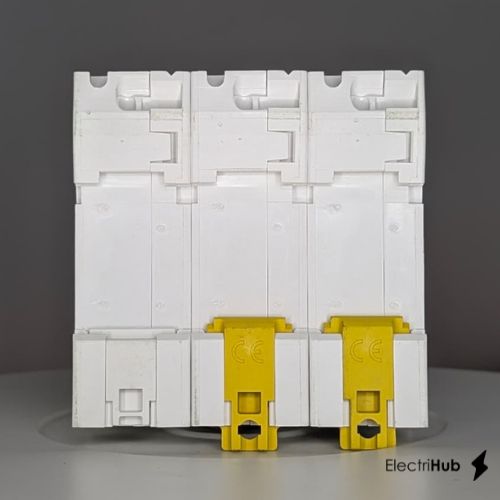

A9N18367 - C120N - circuit breaker - 3P - 100A - C curve - Schneider Electric

Cat No.	A9N18367
Category	MCB
Stock	Back Ordered
Condition	Brand New, Sealed Packaging
Product Type	MCB

Please contact us for the exact delivery timeline

Back Ordered

$277.80

Lead Time: 25 Working Days.

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 22 users

Secure Payment with

Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe

Need help on Inquiry? Call Us on +1 (888) 293-7436

Warranty Guarantee

100% Original Products

EEE Buyer Protection

World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

Schneider A9N18367 MCB Technical Specification

MCB
Breaking Cap	10kA
Curve	C
Model	C120N
No of pole	3P
Range of Product	—
Rating	100A

Product Details

Schneider Electric A9N18367 - This Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 100A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The presence of green strip guarantees contact open physically and allows work to be carried out safely on the downstream circuit. It has good overvoltage withstand capacity. The product is designed to offer a high industrial performance level It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is equal or below 375VDC, 220VAC to 240VAC, 230VAC to 400VAC, 380VAC to 415VAC or 440VAC. The Ui rated insulation voltage is 500VAC The frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 9 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 81mm x (H) 81mm x (D) 73mm. The weight is 0.615kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

Schneider A9N18367 dimensions and weight

Dimensions (L × W × H)

Length 8.2 cm

Width 7.2 cm

Height 8 cm

Weight

Net Weight 0.58 kg

Dimensions are approximate. For precise dimensional drawings, contact us.

Frequently Bought Together

Product Line Card

No Data Available

There is no data to show you right now.

Alternate Products

Product Overview

Frequently Asked Questions for A9N18367

Schneider MCB A9N18367 offers high breaking capacity depending on its pole and rating. You can check exact kA rating using ElectriHub MCB filters such as poles, current rating, and curve type.

Yes, Schneider MCB A9N18367 is designed for home distribution systems and ensures protection against overload and short circuits. Select your pole and ampere rating from the ElectriHub MCB filter.

Schneider MCB A9N18367 is available in B, C, and D curve options depending on the application. Use the curve filter on ElectriHub to verify available options.

To select the right ampere rating for Schneider MCB A9N18367, check your load requirement and matching poles. ElectriHub rating filter helps you choose from 1A to 63A.

Yes, Schneider MCB A9N18367 supports standard DIN rail mounting for easy installation in all household and industrial panels.

Every Schneider A9N18367 MCB purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging ‚Äî ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right MCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.

Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.

Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.

Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
