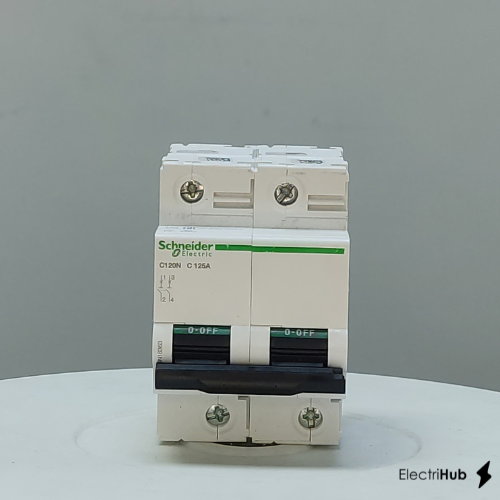

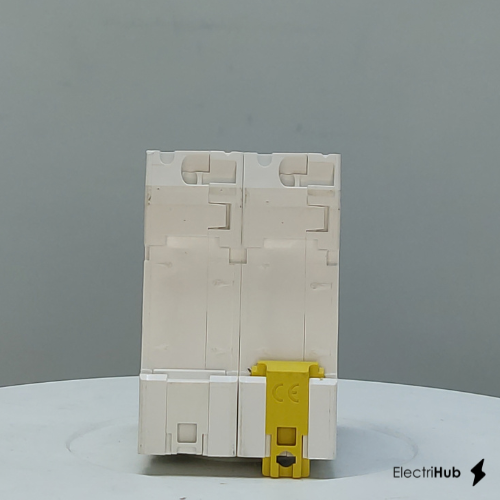

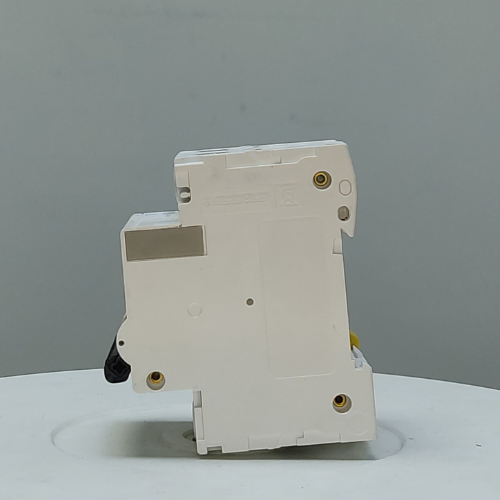

A9N18363 - C120N - circuit breaker - 2P - 125A - C curve - Schneider Electric

Cat No. A9N18363
Category MCB
Stock In Stock
Condition Brand New, Sealed Packaging
Product Type MCB
Please contact us for the exact delivery timeline

In Stock — 25 Qty

$125.70
Quantity Expected Delivery
25 Units 25 Business Days

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 39 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

Schneider A9N18363 MCB Technical Specification

MCB
Breaking Cap 10kA
Curve C
Model C120N
No of pole 2P
Range of Product —
Rating 125A

Product Details

Schneider Electric A9N18363 - This Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 125A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of green strip guarantees contact open physically and allows work to be carried out safely on the downstream circuit. It has good overvoltage withstand capacity. The product is designed to offer a high industrial performance level It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is going from 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 81mm x (D) 73mm. The weight is 0.41kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

Schneider A9N18363 dimensions and weight

Dimensions (L × W × H)
Length 8.8 cm
Width 5.5 cm
Height 7.4 cm
Weight
Net Weight 0.389 kg

Dimensions are approximate. For precise dimensional drawings, contact us.
