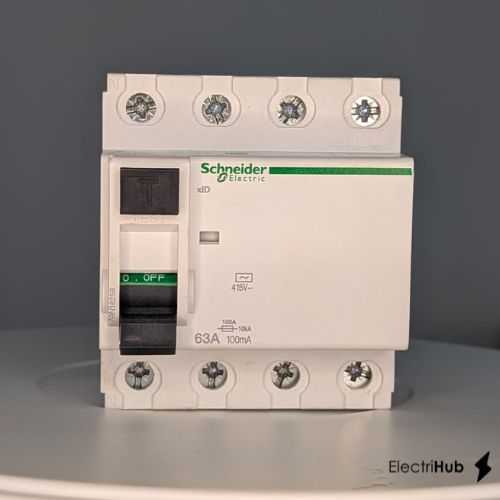

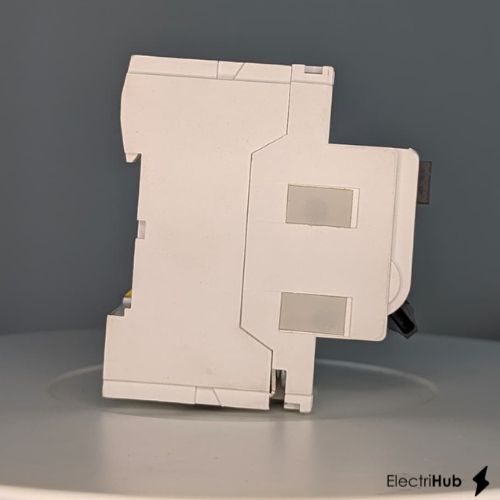

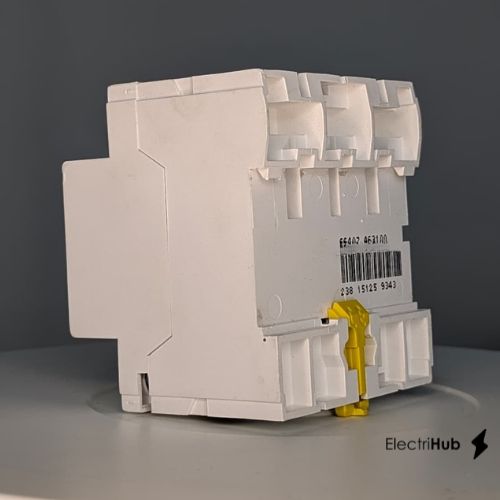

A9N16259 - Acti 9 xID residual circuit breaker - 63 A - 4P - 100mA class AC instantaneous - Schneider Electric
| Cat No. | A9N16259 |
| Category | RCCB/ELCB |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
In Stock — 238 Qty
$81.12
| Quantity | Expected Delivery |
|---|---|
| 238 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 38 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
No Data Available
There is no data to show you right now.
Product Details
Schneider Electric A9N16259 - This product is a Acti9 xID biconnect residual current circuit breaker (RCCB),It is a 4P circuit breaker with In rated current of 63A, AC type protection class and a 100mA earth leakage sensitivity,This product protects against electrical shock by indirect contact and fire hazards,The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals,It is compliant with IEC/EN 61008-1 standard,The (Im/IÎm) rated breaking and making short circuit capacity is up to 630A ,The electrical endurance is up to 4000 cycles. The mechanical endurance is up to 4000 cycles,The Ue operational voltage is 400VAC to 415VAC,The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz,It is DIN rail mountable. The width in 9mm pitches is 8,The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 75mm. The weight is 370g,It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard,The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
Schneider A9N16259 dimensions and weight
Dimensions (L × W × H)
Length
9.4 cm
Width
8.6 cm
Height
7.6 cm
Weight
Net Weight
0.36 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
Related Products
Frequently Bought Together
No Data Available
There is no data to show you right now.
Product Line Card
No Data Available
There is no data to show you right now.
Alternate Products
Product Overview
Schneider Electric A9N16259 - This product is a Acti9 xID biconnect residual current circuit breaker (RCCB),It is a 4P circuit breaker with In rated current of 63A, AC type protection class and a 100mA earth leakage sensitivity,This product protects against electrical shock by indirect contact and fire hazards,The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals,It is compliant with IEC/EN 61008-1 standard,The (Im/IÎm) rated breaking and making short circuit capacity is up to 630A ,The electrical endurance is up to 4000 cycles. The mechanical endurance is up to 4000 cycles,The Ue operational voltage is 400VAC to 415VAC,The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz,It is DIN rail mountable. The width in 9mm pitches is 8,The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 75mm. The weight is 370g,It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard,The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Frequently Asked Questions for A9N16259
Every Schneider A9N16259 RCCB/ELCB purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging — ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right RCCB/ELCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right RCCB/ELCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
The Schneider A9N16259 Residual Current Circuit Breaker (RCCB) / Earth Leakage Circuit Breaker (ELCB) provides critical earth leakage protection. It continuously monitors the current balance between phase and neutral lines to detect low-level leakage currents, protecting humans from hazardous electric shocks and preventing electrical fires caused by insulation faults.
Schneider RCCBs like the A9N16259 are engineered in 2-Pole (Single Phase) and 4-Pole (Three Phase) configurations. They are available in standard sensitivity levels including 30mA for direct human touch safety, 100mA for indirect touch safety, and 300mA for large industrial equipment and fire protection.
It is highly recommended to press the integrated 'T' (Test) button on the Schneider A9N16259 RCCB once every month. This action simulates a small earth-fault condition and tests the mechanical tripping mechanism of the internal circuit breaker, ensuring it remains fully operational under emergency fault conditions.
Yes, the Schneider A9N16259 RCCB complies with Indian and international standards including IS 12640 and IEC/EN 61008-1. It is designed to work seamlessly with Indian grid frequencies of 50Hz and nominal voltages of 240V AC (2P) or 415V AC (4P).
You can buy original, certified Schneider A9N16259 RCCBs directly online from RAS Electrihub. Electrihub offers authentic industrial switchgear with full manufacturer backing, competitive wholesale rates, quick delivery across India, and a proper GST invoice for tax input credit.
The Schneider Electric A9N16259 Residual Current Circuit Breaker (RCCB) available at Electrihub features standard industrial sensitivity ratings (typically 30mA for life protection or 300mA for equipment/fire protection) to instantly detect leakage currents. It provides reliable short-circuit and residual breaking capacity designed to comply with IEC/EN 61008-1 standards for global distribution networks.
No, the A9N16259 is a pure residual current circuit breaker (RCCB) designed exclusively to detect earth leakage faults. For comprehensive thermal-overload and short-circuit protection, it must be coordinated with an upstream Miniature Circuit Breaker (MCB) or fuse setup. Check Electrihub's extensive inventory for compatible Schneider upstream protection devices.
The Schneider A9N16259 is engineered for global industrial, commercial, and high-end residential applications requiring continuous earth-fault monitoring. It carries international certifications including CE, RoHS, and IEC, ensuring compatibility with electrical systems in Europe, North America, and global territories handled by Electrihub.
Proper commissioning requires connecting the line and neutral conductors to the clearly marked terminals. A regular diagnostic test must be performed by pressing the built-in 'T' (Test) button on the front panel of the A9N16259. Electrihub recommends quarterly testing to ensure the internal tripping mechanism operates smoothly under simulated fault conditions.
Sourcing the Schneider Electric A9N16259 from Electrihub guarantees authentic, factory-certified equipment backed by full technical documentation. Electrihub provides fast international shipping, volume discounts for contractors, and reliable technical support for all Schneider automation and distribution gear.
