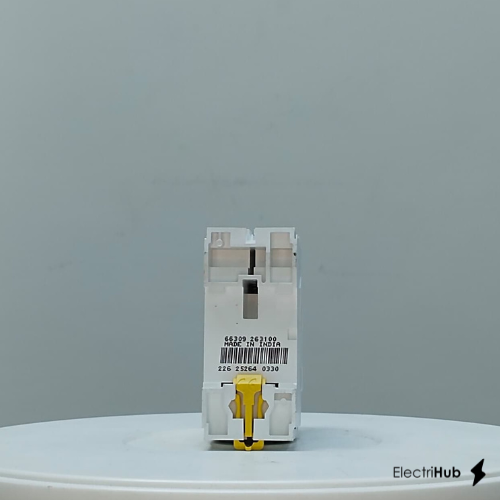

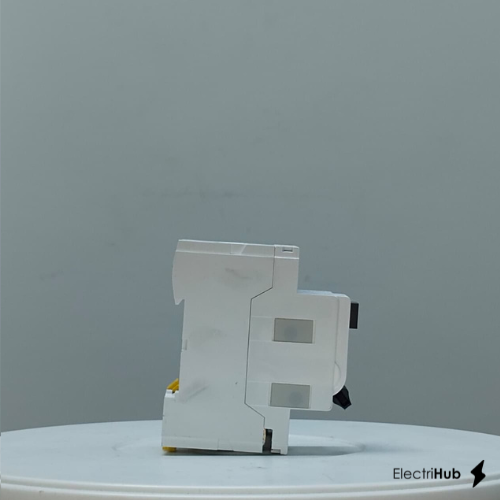

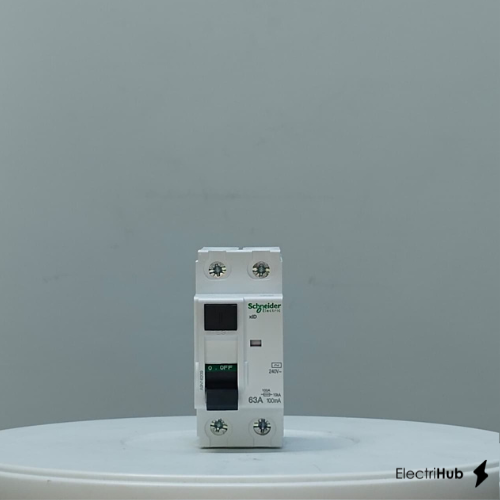

A9N16209 - Acti 9 xID residual circuit breaker - 63 A - 2P - 100mA class AC instantaneous - Schneider Electric
| Cat No. | A9N16209 |
| Category | RCCB/ELCB |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
In Stock — 283 Qty
$81.41
| Quantity | Expected Delivery |
|---|---|
| 283 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 27 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
No Data Available
There is no data to show you right now.
Product Details
Schneider Electric A9N16209 - This product is a Acti9 xID biconnect residual current circuit breaker (RCCB),It is a 2P circuit breaker with 63A In rated current, 100mA earth leakage sensitivity and AC type protection class,This product protects against electrical shock by indirect contact and fire hazards,The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals,It is compliant with IEC/EN 61008-1 standard,The (Im/IÎm) rated breaking and making short circuit capacity is up to 630A ,It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 4000 cycles,The Ue operational voltage is 230VAC to 240VAC,The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz,It is DIN rail mountable. The width in 9mm pitches is 4,The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g,According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure,The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
Schneider A9N16209 dimensions and weight
Dimensions (L × W × H)
Length
9.2 cm
Width
8.6 cm
Height
4.2 cm
Weight
Net Weight
0.2 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
Related Products
Frequently Bought Together
No Data Available
There is no data to show you right now.
Product Line Card
No Data Available
There is no data to show you right now.
Alternate Products
Product Overview
Schneider Electric A9N16209 - This product is a Acti9 xID biconnect residual current circuit breaker (RCCB),It is a 2P circuit breaker with 63A In rated current, 100mA earth leakage sensitivity and AC type protection class,This product protects against electrical shock by indirect contact and fire hazards,The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals,It is compliant with IEC/EN 61008-1 standard,The (Im/IÎm) rated breaking and making short circuit capacity is up to 630A ,It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 4000 cycles,The Ue operational voltage is 230VAC to 240VAC,The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz,It is DIN rail mountable. The width in 9mm pitches is 4,The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g,According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure,The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Frequently Asked Questions for A9N16209
Every Schneider A9N16209 RCCB/ELCB purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging — ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right RCCB/ELCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right RCCB/ELCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
The Schneider A9N16209 RCCB is designed to provide high-level protection against earth leakage and electric shocks. It detects residual current and disconnects the circuit instantly to prevent fire hazards and ensure human safety in both residential and commercial installations in India.
The A9N16209 RCCB is part of Schneider Electric's high-performance range. For technical specifications like mA sensitivity (e.g., 30mA for life safety or 300mA for fire protection) and ampere rating, please refer to the product datasheet. It is optimized for the standard 230V/415V electrical systems in India.
Yes, the Schneider A9N16209 is fully compliant with IEC/EN 61008-1 standards. In India, it meets the necessary safety benchmarks required for distribution boards, ensuring reliable performance under local environmental conditions.
It is recommended to press the 'Test' button on the Schneider A9N16209 at least once every month. This ensures that the internal mechanical and electronic trip mechanism is functioning correctly and the device is ready to protect your circuit from earth faults.
Depending on the pole configuration (2-pole or 4-pole), the A9N16209 can be used for single-phase (2P) or three-phase with neutral (4P) applications. Ensure that the neutral connection is properly established as per Schneider's wiring guidelines for effective earth leakage detection.
The Schneider A9N16209 is fully compliant with global safety standards including IEC 61008-1 and EN 61008-1. These certifications ensure the residual current circuit breaker provides reliable protection against earth leakage and electric shocks in international industrial and residential power networks.
Yes, most Schneider Electric RCCB/ELCB models, including the A9N16209, are designed for global compatibility, operating efficiently at both 50Hz and 60Hz frequencies. This makes them suitable for diverse electrical grids across Europe, Asia, and the Americas.
The A9N16209 features a high rated breaking capacity (typically 6kA or 10kA depending on the specific sub-series), ensuring it can safely interrupt fault currents. This technical robustness is essential for protecting sensitive downstream equipment in high-demand global infrastructures.
Schneider Electric designs the A9N16209 with high-quality thermoplastic materials that maintain operational integrity in varied climates. It is calibrated for standard reference temperatures, but remains reliable in the rigorous conditions often found in industrial enclosures worldwide.
The A9N16209 RCCB/ELCB is available in different tripping classes. Type AC is used for standard sinusoidal AC currents, while Type A provides additional protection against pulsating DC components, common in modern global electronics and EV charging setups.
