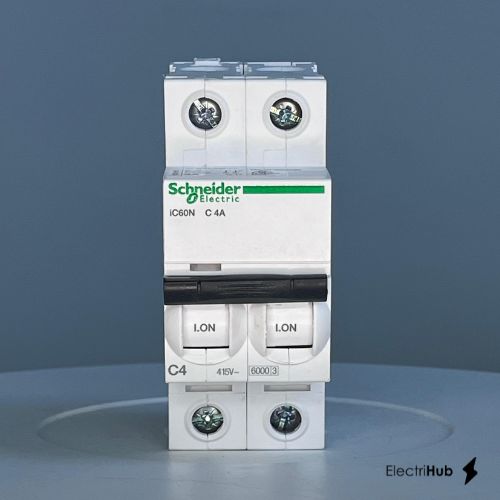

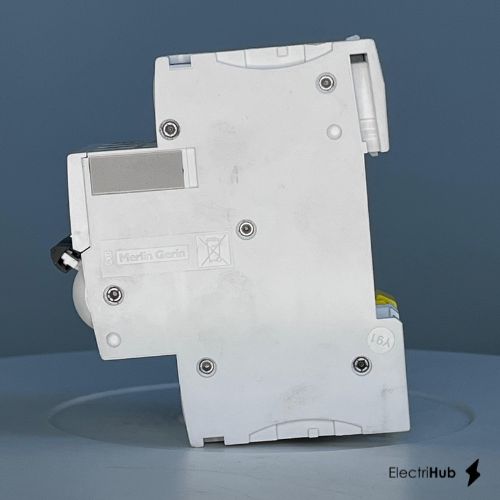

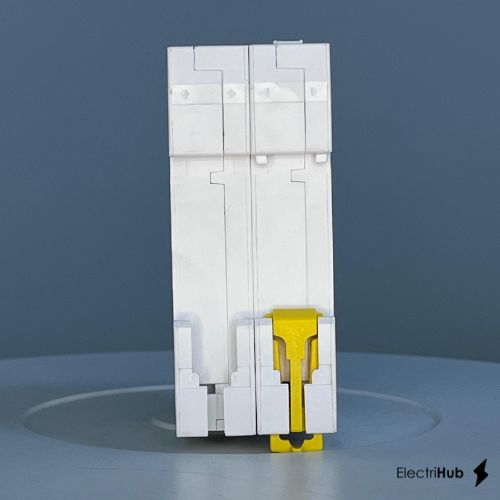

A9F44204 - Acti9 iC60N 2P 4A C Miniature Circuit breaker - Schneider Electric
| Cat No. | A9F44204 |
| Category | MCB |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
| Product Type | MCB |
In Stock — 4 Qty
$117.92
| Quantity | Expected Delivery |
|---|---|
| 4 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 12 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
Schneider A9F44204 MCB Technical Specification
| MCB | |
|---|---|
| Breaking Cap | 50kA |
| Curve | C |
| Model | iC60N |
| No of pole | 2P |
| Range of Product | — |
| Rating | 4A |
Product Details
Schneider A9F44204 - This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 4A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 50kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 78.5mm. The weight is 0.25kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
Schneider A9F44204 dimensions and weight
Dimensions (L × W × H)
Length
9 cm
Width
7.5 cm
Height
3.6 cm
Weight
Net Weight
0.22 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
Related Products
Frequently Bought Together
Product Line Card
No Data Available
There is no data to show you right now.
Alternate Products
Product Overview
Schneider A9F44204 - This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 4A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 50kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 78.5mm. The weight is 0.25kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Frequently Asked Questions for A9F44204
Schneider MCB A9F44204 offers high breaking capacity depending on its pole and rating. You can check exact kA rating using ElectriHub MCB filters such as poles, current rating, and curve type.
Yes, Schneider MCB A9F44204 is designed for home distribution systems and ensures protection against overload and short circuits. Select your pole and ampere rating from the ElectriHub MCB filter.
Schneider MCB A9F44204 is available in B, C, and D curve options depending on the application. Use the curve filter on ElectriHub to verify available options.
To select the right ampere rating for Schneider MCB A9F44204, check your load requirement and matching poles. ElectriHub rating filter helps you choose from 1A to 63A.
Yes, Schneider MCB A9F44204 supports standard DIN rail mounting for easy installation in all household and industrial panels.
Every Schneider A9F44204 MCB purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging — ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right MCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right MCB for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
