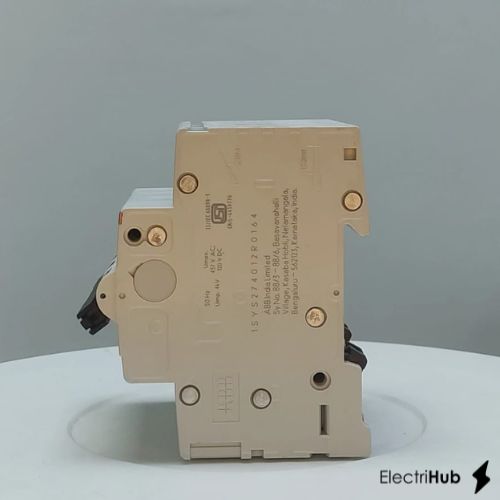

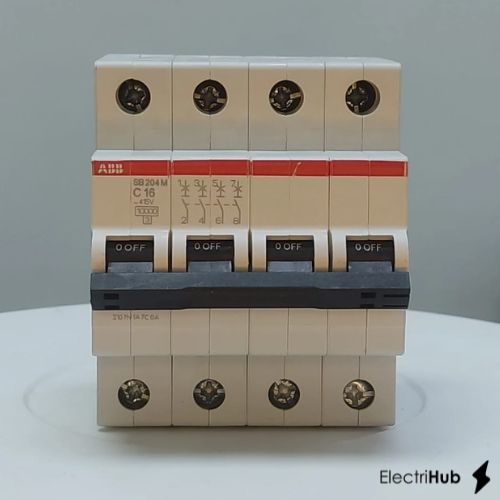

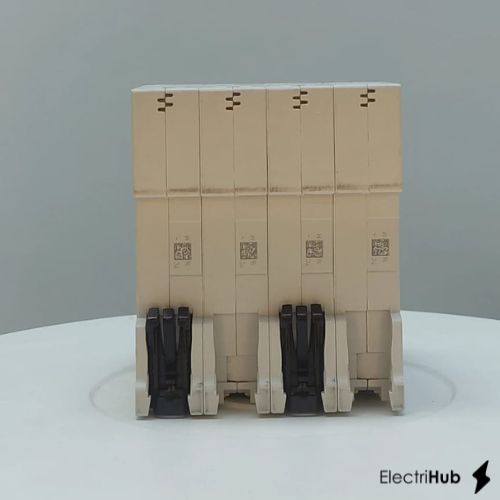

1SYS274012R0164 - Miniature Circuit Breaker - SB200M - 4P - 16 A - C - 10 kA | ABB

Cat No.	1SYS274012R0164
Category	MCB
Stock	In Stock
Condition	Brand New, Sealed Packaging
Product Type	MCB

Please contact us for the exact delivery timeline

In Stock — 215 Qty

$36.17

Quantity	Expected Delivery
215 Units	25 Business Days

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 25 users

Secure Payment with

Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe

Need help on Inquiry? Call Us on +1 (888) 293-7436

Warranty Guarantee

100% Original Products

EEE Buyer Protection

World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

ABB 1SYS274012R0164 MCB Technical Specification

MCB
Breaking Cap	10kA
Curve	C
Model	SB204
No of pole	4P
Range of Product	—
Rating	16A

Product Details

1SYS274012R0164 ABB SB204M-C16 - System pro M compact SB200M Miniature Circuit Breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 240/415 V AC) and rated currents (up to 63A). All MCBs of the product range SB200M comply with IS/IEC 60898-1, allowing the use for residential, commercial and industrial applications. We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

ABB 1SYS274012R0164 dimensions and weight

Dimensions (L × W × H)

Length 6.9 cm

Width 7 cm

Height 8.5 cm

Weight

Net Weight 0.5 kg

Dimensions are approximate. For precise dimensional drawings, contact us.

Frequently Bought Together

Product Line Card

No Data Available

There is no data to show you right now.

Alternate Products

Product Overview

Frequently Asked Questions for 1SYS274012R0164

Electrihub is an authorized ABB distributor, guaranteeing 100% genuine ABB 1SYS274012R0164 or SB204M-C16 MCB products backed by ABB warranty. With strong inventory and competitive pricing, we ensure quick delivery and reliable support for your automation needs.

Our experienced technical team is always ready to help you select the right ABB solution for your project ‚Äî ensuring performance, safety, and peace of mind.

The ABB 1SYS274012R0164 MCB offers reliable overload and short circuit protection with thermal magnetic tripping, high breaking capacity, and long mechanical life. It is suitable for residential, commercial, and industrial distribution systems.

The ABB 1SYS274012R0164 is used for final distribution circuits, lighting, socket protection, industrial loads, control wiring, and sub circuit protection.

Selection depends on connected load current, cable size, application category and tripping curve. Ensure the MCB rating matches system requirements.

ABB MCBs generally come in B, C and D curves where B is suitable for resistive loads, C for inductive loads, and D for high inrush industrial loads.

Mount on DIN rail, ensure correct line in/line out connection, torque tightening and proper busbar or cable termination as per ABB wiring practices.

Datasheet containing breaking capacity, trip characteristics and wiring details is available on Electrihub product page for 1SYS274012R0164.

Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.

Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.

Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.

The price of ABB 1SYS274012R0164 MCB depends on specifications, availability, and market conditions. You can check the latest GST-inclusive price on Electrihub India, which provides genuine products, transparent billing, and PAN India delivery.

The ABB 1SYS274012R0164 is designed for easy DIN rail mounting. Its compact design allows for quick installation and secure connection within any compatible ABB or standard distribution board.

The ABB 1SYS274012R0164 MCB provides two primary forms of protection: thermal protection against overloads and electromagnetic protection against short circuits, making it a reliable choice for your electrical system.

The ABB 1SYS274012R0164 is available in various pole configurations (1P, 2P, 3P, 4P). Please verify the specific pole count for this model to ensure it meets your single-phase or three-phase wiring needs.

The ABB 1SYS274012R0164 MCB features a high rated insulation voltage (Ui), typically around 500V AC, which ensures safety during electrical surges and maintains the integrity of the ABB device.

While primarily designed for AC, certain variants of the ABB 1SYS274012R0164 series may support DC applications within specific voltage limits. Always refer to the technical specifications of the ABB 1SYS274012R0164 before use in DC circuits.
