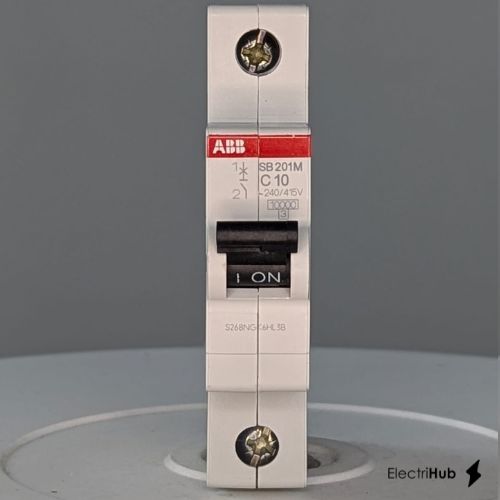

1SYS271012R0104 - Miniature Circuit Breaker - SB200M - 1P - 10 A - C - 10 kA | ABB
| Cat No. | 1SYS271012R0104 |
| Category | MCB |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
| Product Type | MCB |
In Stock — 2183 Qty
$5.45
| Quantity | Expected Delivery |
|---|---|
| 2,183 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 16 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
ABB 1SYS271012R0104 MCB Technical Specification
| MCB | |
|---|---|
| Breaking Cap | 10kA |
| Curve | C |
| Model | SB201 |
| No of pole | 1P |
| Range of Product | — |
| Rating | 10A |
Product Details
1SYS271012R0104 ABB SB201M-C10 - System pro M compact SB200M Miniature Circuit Breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 240/415 V AC) and rated currents (up to 63A). All MCBs of the product range SB200M comply with IS/IEC 60898-1, allowing the use for residential, commercial and industrial applications. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
ABB 1SYS271012R0104 dimensions and weight
Dimensions (L × W × H)
Length
6.9 cm
Width
1.75 cm
Height
8.5 cm
Weight
Net Weight
0.5 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
Related Products
Frequently Bought Together
Product Line Card
No Data Available
There is no data to show you right now.
Alternate Products
Product Overview
1SYS271012R0104 ABB SB201M-C10 - System pro M compact SB200M Miniature Circuit Breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 240/415 V AC) and rated currents (up to 63A). All MCBs of the product range SB200M comply with IS/IEC 60898-1, allowing the use for residential, commercial and industrial applications. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Frequently Asked Questions for 1SYS271012R0104
Electrihub is an authorized ABB distributor, guaranteeing 100% genuine ABB 1SYS271012R0104 or SB201M-C10 MCB products backed by ABB warranty. With strong inventory and competitive pricing, we ensure quick delivery and reliable support for your automation needs.
Our experienced technical team is always ready to help you select the right ABB solution for your project — ensuring performance, safety, and peace of mind.
Our experienced technical team is always ready to help you select the right ABB solution for your project — ensuring performance, safety, and peace of mind.
The ABB 1SYS271012R0104 MCB offers reliable overload and short circuit protection with thermal magnetic tripping, high breaking capacity, and long mechanical life. It is suitable for residential, commercial, and industrial distribution systems.
The ABB 1SYS271012R0104 is used for final distribution circuits, lighting, socket protection, industrial loads, control wiring, and sub circuit protection.
Selection depends on connected load current, cable size, application category and tripping curve. Ensure the MCB rating matches system requirements.
ABB MCBs generally come in B, C and D curves where B is suitable for resistive loads, C for inductive loads, and D for high inrush industrial loads.
Mount on DIN rail, ensure correct line in/line out connection, torque tightening and proper busbar or cable termination as per ABB wiring practices.
Datasheet containing breaking capacity, trip characteristics and wiring details is available on Electrihub product page for 1SYS271012R0104.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
The price of ABB 1SYS271012R0104 MCB depends on specifications, availability, and market conditions. You can check the latest GST-inclusive price on Electrihub India, which provides genuine products, transparent billing, and PAN India delivery.
The ABB 1SYS271012R0104 MCB is engineered for durability, boasting thousands of mechanical and electrical operating cycles, which makes the ABB unit a long-lasting component in your electrical panel.
Yes, the ABB 1SYS271012R0104 often includes a clear ON/OFF visual indication or a trip-flag to help maintenance teams quickly identify the status of the circuit and ensure safety during troubleshooting.
When installed in a suitable enclosure, the ABB 1SYS271012R0104 MCB typically provides IP20 protection for its terminals, preventing accidental contact with live parts and ensuring user safety.
The ABB 1SYS271012R0104 series supports various accessories, including auxiliary contacts, signal contacts, and shunt trips, allowing for enhanced monitoring and remote control of your ABB electrical system.
The ABB 1SYS271012R0104 MCB is designed to operate reliably in a wide temperature range, generally from -25°C to +60°C, making it suitable for varying environmental conditions without compromising its tripping accuracy.
