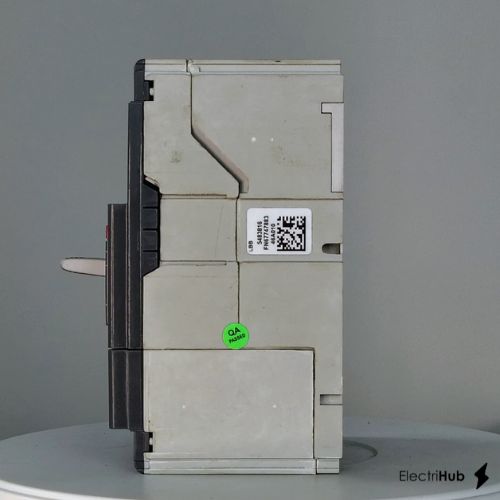

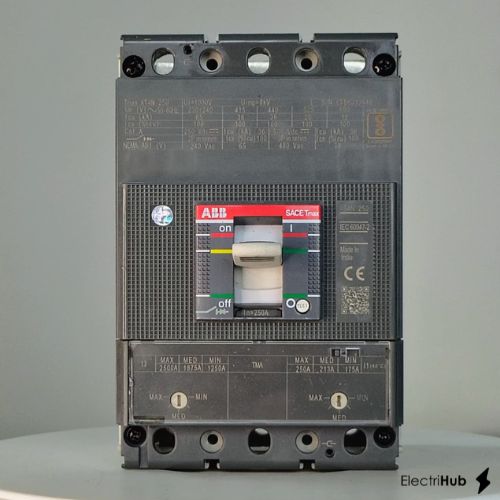

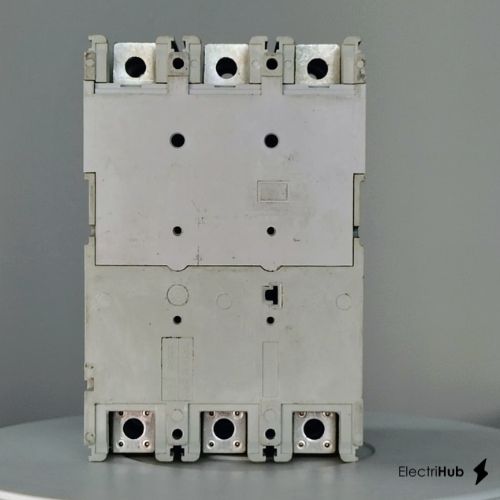

1SDA068092R1 - XT4N 250 TMA 250-2500 3p F F | ABB

Cat No. 1SDA068092R1
Category MCCB
Stock In Stock
Condition Brand New, Sealed Packaging
Product Type MCCB
Please contact us for the exact delivery timeline

In Stock — 7 Qty

$415.34
Quantity Expected Delivery
7 Units 25 Business Days

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 15 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

ABB 1SDA068092R1 MCCB Technical Specification

MCCB
Breaking Capacity 36kA
Model Tmax
No of Pole 3P
Protection Overload and Short Circuit
Rating 250A

Product Details

1SDA068092R1 ABB XT4N 250 TMA 250-2500 3p F F - C.BREAKER TMAX XT4N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 250 I3=1250..2500 A. We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

ABB 1SDA068092R1 dimensions and weight

Dimensions (L × W × H)
Length 17.1 cm
Width 15.1 cm
Height 21.4 cm
Weight
Net Weight 2.38 kg

Dimensions are approximate. For precise dimensional drawings, contact us.
