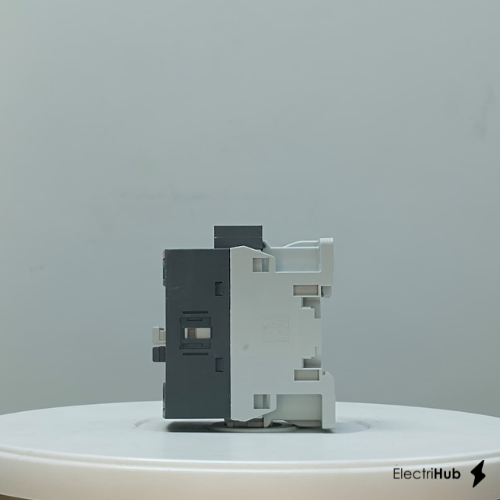

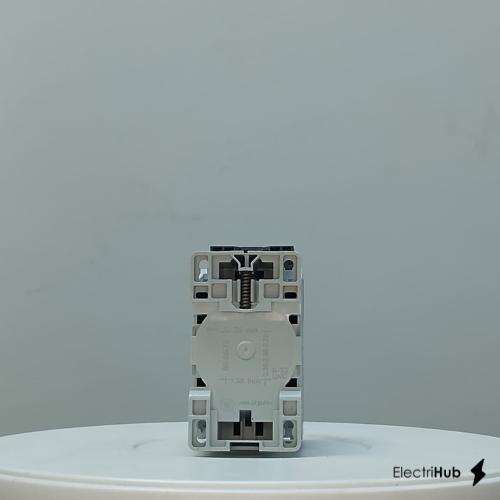

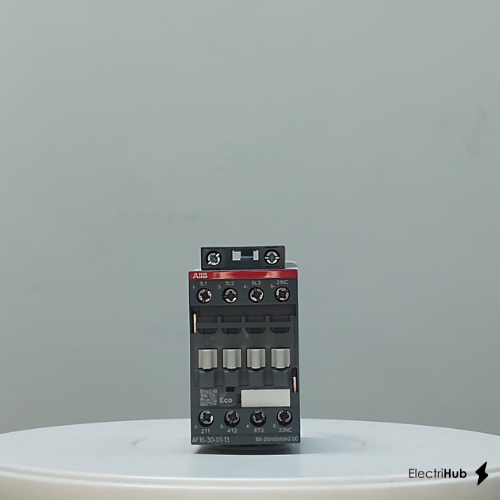

AF16-30-01-13 - 1SBL177001R1301 Contactor 100-250V50/60HZ-DC - ABB
| Cat No. | 1SBL177001R1301 |
| Category | Power Contactor |
| Stock | In Stock |
| Condition | Brand New, Sealed Packaging |
| Product Type | Power Contactor |
In Stock — 28 Qty
$83.97
| Quantity | Expected Delivery |
|---|---|
| 28 Units | 25 Business Days |
Reach out to us for project inquiries, Add to cart and click on send inquiry
Currently viewed by 25 usersSecure Payment with
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach
Technical Documents
No Data Available
There is no data to show you right now.
Technical Specification
ABB 1SBL177001R1301 Power Contactor Technical Specification
| Power Contactor | |
|---|---|
| AC1 Rating | 30A |
| AC3 Rating | 26A |
| Coil Voltage | 100-250Vac/dc |
| Inbuilt Auxiliary Contact | 1NC |
| Model | AF |
| No of Pole | 3P |
| Range of Product | — |
Product Details
1SBL177001R1301 ABB AF16-30-01-13 - The AF16-30-01-13 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 7.5 kW / 400 V AC (AC-3) or 10 hp / 480 V UL and switching power circuits up to 30 A (AC-1) or 30 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Product Dimensions
ABB 1SBL177001R1301 dimensions and weight
Dimensions (L × W × H)
Length
7.9 cm
Width
8.7 cm
Height
4.7 cm
Weight
Net Weight
0.5 kg
Dimensions are approximate. For precise dimensional drawings, contact us.
Related Products
Frequently Bought Together
Product Line Card
No Data Available
There is no data to show you right now.
Alternate Products
Product Overview
1SBL177001R1301 ABB AF16-30-01-13 - The AF16-30-01-13 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 7.5 kW / 400 V AC (AC-3) or 10 hp / 480 V UL and switching power circuits up to 30 A (AC-1) or 30 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. We are dedicatedly involved in providing an excellent quality products at Electrihub.
Frequently Asked Questions for 1SBL177001R1301
Electrihub is an authorized ABB distributor, guaranteeing 100% genuine ABB 1SBL177001R1301 or AF16-30-01-13 Power Contactor products backed by ABB warranty. With strong inventory and competitive pricing, we ensure quick delivery and reliable support for your automation needs.
Our experienced technical team is always ready to help you select the right ABB solution for your project — ensuring performance, safety, and peace of mind.
Our experienced technical team is always ready to help you select the right ABB solution for your project — ensuring performance, safety, and peace of mind.
The ABB 1SBL177001R1301 power contactor is engineered for reliable switching of motors and inductive loads. It provides high mechanical endurance, efficient arc suppression, compact construction, and seamless coordination with ABB overload relays.
The ABB 1SBL177001R1301 is widely used in MCC panels, DOL starters, star delta starters, compressors, pumps, conveyors, and industrial automation systems.
It uses heavy duty contacts, optimised magnetic coil design, and arc control chambers to maintain consistent switching performance even during high inrush or frequent operations.
Check AC 3 current rating, coil voltage, utilization category, number of poles, switching frequency, and compatibility with auxiliary contact blocks.
Ensure correct panel or DIN rail mounting, proper tightening torque, coil voltage matching, and wiring as per ABB diagrams for safe motor control integration.
Datasheet for 1SBL177001R1301 can be downloaded from Electrihub along with wiring diagrams, specifications, and dimensional data.
Yes. RAS Electrihub Private Limited provides PAN India delivery with reliable logistics, safe packaging, and doorstep delivery across all states and union territories.
Yes. RAS Electrihub Private Limited issues GST-compliant invoices and also supports PO-based invoicing for businesses, contractors, and organizations across India.
Yes. RAS Electrihub Private Limited operates as an ISO-certified organization, ensuring quality sourcing, authentic products, and standardized procurement and delivery processes.
The price of ABB 1SBL177001R1301 Power Contactor depends on specifications, availability, and market conditions. You can check the latest GST-inclusive price on Electrihub India, which provides genuine products, transparent billing, and PAN India delivery.
Yes, the ABB 1SBL177001R1301 power contactor typically supports auxiliary contact blocks which can be used for signaling, interlocking, and control circuit feedback in automation and electrical panels.
Yes, the ABB 1SBL177001R1301 power contactor is widely used in direct‑on‑line (DOL) starters, star‑delta starters, and other motor control panels where reliable switching is required.
The ABB 1SBL177001R1301 power contactor is generally manufactured in compliance with international standards such as IEC 60947‑4‑1 for low‑voltage switchgear and controlgear used in motor control applications.
The ABB 1SBL177001R1301 contactor allows high‑power circuits to be controlled by a low‑voltage control signal, improving operator safety and enabling automated switching of electrical loads.
The ABB 1SBL177001R1301 power contactor is typically designed for DIN rail or panel mounting, making it easy to integrate into electrical distribution boards and industrial control panels.
