1SAM461000R1019 - MO165-80 Manual Motor Starter Magnetic Only 80 A | ABB

Cat No. 1SAM461000R1019
Category MPCB
Stock Back Ordered
Condition Brand New, Sealed Packaging
Product Type MPCB
Please contact us for the exact delivery timeline

Back Ordered

$454.65

Lead Time: 25 Working Days.

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 17 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

ABB 1SAM461000R1019 MPCB Technical Specification

MPCB
Actuator Type —
Application Motor
Breaking Cap -
OL Setting —
Protection Magnetic
Range of Product —
Rating 80A
Release Short circuit Protection
SC Setting —
Type MO165

Product Details

1SAM461000R1019 ABB MO165-80 - The MO165 manual motor starter magnetic only is a compact and powerful range for motor protection up to 45 kW (400 V) in width of 55 mm. The devices are used to manually switch on and off loads/motors and to protect them reliably and without the need for a fuse from short-circuits. The manual motor starter offers a rated service short-circuit breaking capacity up to 100 kA at 400 V AC. A combination together with overload relays or motor controllers allows the protection of motors. Further features are the built-in disconnect function, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starters magnetic only are suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars and power in-feed blocks are available as accessory. We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

ABB 1SAM461000R1019 dimensions and weight

Dimensions (L × W × H)
Length 17.7 cm
Width 6.4 cm
Height 14 cm
Weight
Net Weight 1.1 kg

Dimensions are approximate. For precise dimensional drawings, contact us.

Related Products

GV7RS150

GV7RS150 - TeSys GV7 - circuit breaker - 3P - AC-3 - 90...150 A - thermal-magnetic - Schne..

GV7RS150

Cat No: GV7RS150 Back Ordered expedited delivery
Price On Request
GV7RS220

GV7RS220 - TeSys GV7 - circuit breaker - 3P - AC-3 - 132...220 A - thermal-magnetic - Schn..

GV7RS220

Cat No: GV7RS220 Back Ordered expedited delivery
Price On Request
GZ1E01

GZ1E01 - Motor circuit breaker GZ1 - 3 Poles 3d - 0.1..0.16A - thermomagnetic trip unit AC..

GZ1E01

Cat No: GZ1E01 In Stock: 68 Units expedited delivery
$74.27
GZ1E02

GZ1E02 - Motor circuit breaker GZ1 - 3 Poles 3d - 0.16..0.25A - thermomagnetic trip unit A..

GZ1E02

Cat No: GZ1E02 In Stock: 80 Units expedited delivery
$74.27
GZ1E03

GZ1E03 - motor circuit breaker GZ1 AC 3 poles 3d AC 0.25..0.40A AC thermomagnetic trip uni..

GZ1E03

Cat No: GZ1E03 In Stock: 75 Units expedited delivery
$74.27
GZ1E04

GZ1E04 - motor circuit breaker GZ1 AC 3 poles 3d AC 0.40..0.63A AC thermomagnetic trip uni..

GZ1E04

Cat No: GZ1E04 In Stock: 168 Units expedited delivery
$86.44
GZ1E05

GZ1E05 - motor circuit breaker GZ1 AC 3 poles 3d AC 0.63..1A AC thermomagnetic trip unit A..

GZ1E05

Cat No: GZ1E05 In Stock: 190 Units expedited delivery
$75.07
GZ1E06

GZ1E06 - motor circuit breaker GZ1 AC 3 poles 3d AC 1..1.6A AC thermomagnetic trip unit AC..

GZ1E06

Cat No: GZ1E06 In Stock: 296 Units expedited delivery
$75.85

Frequently Bought Together

1SAJ510004R0002 - UMCPAN-CAB.150 Control Panel Connection Cable 1.5 m - ABB

1SAJ510004R0002

Cat No: 1SAJ510004R0002 Back Ordered expedited delivery
$319.65
1SAM201910R1001

1SAM201910R1001 - AA1-24 Shunt Trip 20-24V | ABB

1SAM201910R1001

Cat No: 1SAM201910R1001 Back Ordered expedited delivery
$89.62
1SAM201910R1002

1SAM201910R1002 - AA1-110 Shunt Trip 110V | ABB

1SAM201910R1002

Cat No: 1SAM201910R1002 In Stock: 15 Units expedited delivery
$89.62
1SAM201910R1003

1SAM201910R1003 - AA1-230 Shunt Trip 200-240V | ABB

1SAM201910R1003

Cat No: 1SAM201910R1003 In Stock: 15 Units expedited delivery
$89.62
1SAM201910R1004

1SAM201910R1004 - AA1-400 Shunt Trip 350-415V | ABB

1SAM201910R1004

Cat No: 1SAM201910R1004 Back Ordered expedited delivery
$89.62
1SAM201916R1114

1SAM201916R1114 - PS1-4-1-100 3-phase busbar for 4 MS116 /MS132 with 1 HK/SK, Ie=100A | AB..

1SAM201916R1114

Cat No: 1SAM201916R1114 Back Ordered expedited delivery
$81.11
1SAM201904R1001

1SAM201904R1001 - UA1-24 Undervoltage release 24 V | ABB

1SAM201904R1001

Cat No: 1SAM201904R1001 Back Ordered expedited delivery
$73.40
1SAM201904R1004

1SAM201904R1004 - UA1-110 Undervoltage release 110V 110V 50Hz/120V 60Hz | ABB

1SAM201904R1004

Cat No: 1SAM201904R1004 Back Ordered expedited delivery
$73.40
1SAM201904R1005

1SAM201904R1005 - UA1-230 Undervoltage release 230 V 50 Hz / 240 V 60 Hz | ABB

1SAM201904R1005

Cat No: 1SAM201904R1005 Back Ordered expedited delivery
$73.40
1SAM201904R1007

1SAM201904R1007 - UA1-415 Undervoltage release 415V 415V 50Hz/480V 60Hz | ABB

1SAM201904R1007

Cat No: 1SAM201904R1007 Back Ordered expedited delivery
$73.40

Product Line Card

No Data Available

There is no data to show you right now.

Alternate Products

3RV2031-4VB10

3RV2031-4VB10 - MPCB 35 - 45 A, Standard Release, O/L & S/C - siemens

3RV2031-4VB10

Cat No: 3RV2031-4VB10 Back Ordered expedited delivery
$456.12
3RV2342-4HC10

3RV2342-4HC10 - Circuit breaker size S3 for starter combination Rated current 50 A N-relea..

3RV2342-4HC10

Cat No: 3RV2342-4HC10 Back Ordered expedited delivery
$452.64
3RV2342-4JC10

3RV2342-4JC10 - Circuit breaker size S3 for starter combination Rated current 63 A N-relea..

3RV2342-4JC10

Cat No: 3RV2342-4JC10 Back Ordered expedited delivery
$452.64
3RV2431-4XA10

3RV2431-4XA10 - MPCB 49 - 59 A, Transformer Protection - siemens

3RV2431-4XA10

Cat No: 3RV2431-4XA10 Back Ordered expedited delivery
$457.06
3RV2131-4PA10

3RV2131-4PA10 - Circuit breaker size S2 for motor protection, CLASS 10 with overload relay..

3RV2131-4PA10

Cat No: 3RV2131-4PA10 Back Ordered expedited delivery
$452.10

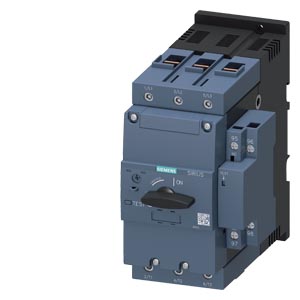

3RV2142-4FA10

3RV2142-4FA10 - Circuit breaker size S3 for motor protection CLASS 10 with overload relay..

3RV2142-4FA10

Cat No: 3RV2142-4FA10 Back Ordered expedited delivery
$462.05

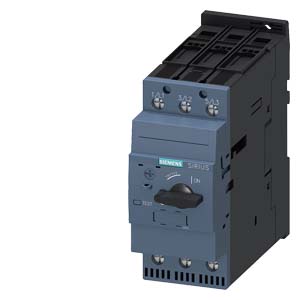

3RV2032-4VA10

3RV2032-4VA10 - Circuit breaker size S2 for motor protection, CLASS 10 A-release 35...45 A..

3RV2032-4VA10

Cat No: 3RV2032-4VA10 In Stock: 5 Units expedited delivery
$462.27

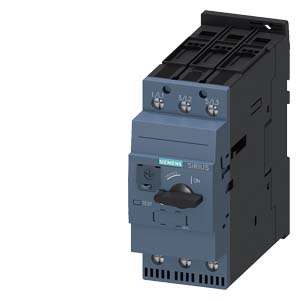

3RV2031-4WB10
