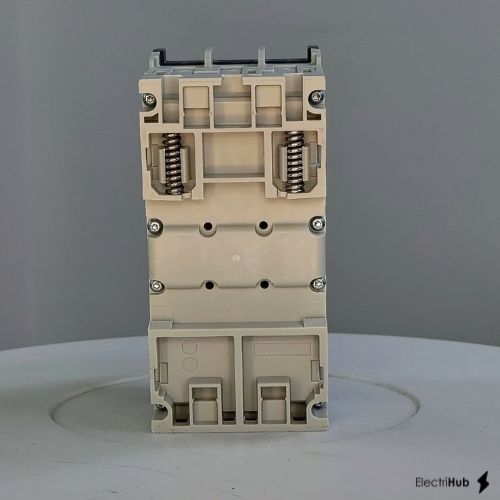

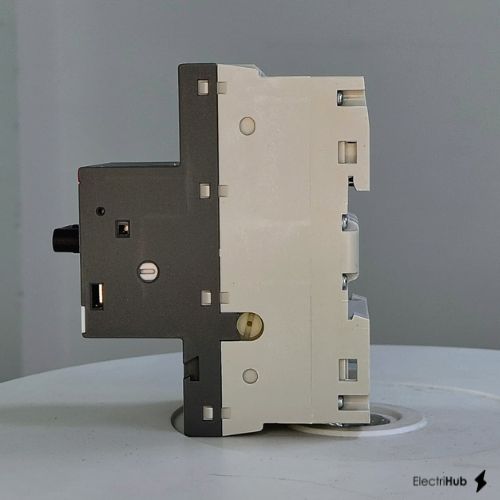

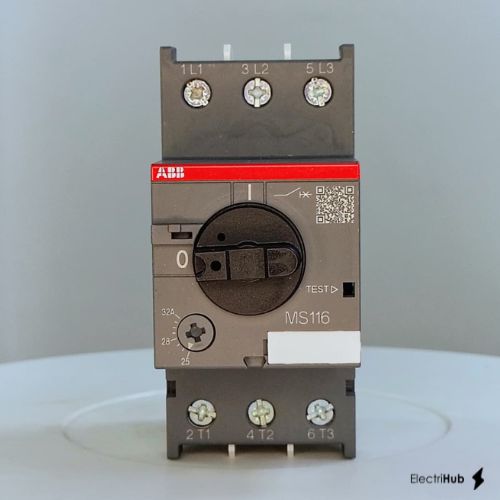

1SAM250000R1013 - MS116-20 Manual Motor Starter 16 ... 20 A | ABB

Cat No. 1SAM250000R1013
Category MPCB
Stock In Stock
Condition Brand New, Sealed Packaging
Product Type MPCB
Please contact us for the exact delivery timeline

In Stock — 77 Qty

$102.29
Quantity Expected Delivery
77 Units 25 Business Days

Reach out to us for project inquiries, Add to cart and click on send inquiry

Currently viewed by 28 users
Secure Payment with
Visa, MasterCard, American Express, Apple Pay, Discover, PayPal, Stripe
Need help on Inquiry? Call Us on +1 (888) 293-7436
Warranty Guarantee
100% Original Products
EEE Buyer Protection
World-Wide Reach

Technical Documents

No Data Available

There is no data to show you right now.

Technical Specification

ABB 1SAM250000R1013 MPCB Technical Specification

MPCB
Actuator Type —
Application Motor
Breaking Cap 10kA
OL Setting 16-20A
Protection Thermal Magnetic Release
Range of Product —
Rating 16-20A
Release OverLoad, Short Circuit Protection
SC Setting 300A
Type MS116

Product Details

1SAM250000R1013 ABB MS116-20 - The MS116-20 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 20.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 10 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory. We are dedicatedly involved in providing an excellent quality products at Electrihub.

Product Dimensions

ABB 1SAM250000R1013 dimensions and weight

Dimensions (L × W × H)
Length 10.2 cm
Width 9.2 cm
Height 5 cm
Weight
Net Weight 0.5 kg

Dimensions are approximate. For precise dimensional drawings, contact us.
